Category: Datamax-O’Neil(Honeywell)

The Datamax-O’Neil Performance Series printers are a brand-new, innovative line designed to address many of the challenges customers have faced with thermal printers over the years. This powerful series of printers is the easiest to feed, operate, and integrate thermal printer on the market today.

The Performance Series printers offer superior print quality, automatic paper feeding, a user-friendly color touchscreen, unparalleled print registration capabilities, and the industry-standard printer language PCL.

PCL is a standardized printer language that runs on various operating systems, making it independent of any application software running on the computer. This ensures faster and easier integration, enabling plug-and-play functionality and putting the printer system to work as soon as possible.

As a member of the Performance Series, this printer features a near-edge printhead and can print on synthetic materials, tags, self-adhesive materials, and plastics.

These high-performance printers adhere to the highest standards, featuring die-cast frames and metal housings, making them ideal for industrial environments. These thermal printers not only offer 4″ (4.16in/105.7mm) or 6″ (6.83in/173.5mm) label printing capabilities, but also offer printing speeds ranging from 6ips/152mmps to 10ips/254mmps and resolutions from 300dpi to 600dpi, meeting the most diverse needs.

Features of the Performance Series printers:
● SAP-enabled printers out of the box, an advantage only true PCL5 thermal barcode printers offer. This eliminates the need for expensive and complex middleware applications in printer networks. All ST Performance Series printers are SAP certified.
● Automatic label loading and calibration frees printer operators from tedious and time-consuming label installation.
● Laser and inkjet printer users not only enjoy the benefits of enhanced thermal barcode printing but also reduce operating costs through seamless integration with true PCL5 devices.
● PCL5e standard language allows users to set up printers faster and with virtually unlimited application options.
● A color graphic touchscreen display with intuitive menu operation and seamless user interface navigation.
● Near-edge printheads maximize label utilization, enabling customers to design and print barcodes carrying detailed information. Flexible multi-media printing technology allows label printing on synthetic materials, hang tags, self-adhesive materials, and plastics.
● Every Performance Series printer comes standard with a 300 dpi printhead, and now users can enjoy the benefits of a high-resolution printhead at the price of a 203 dpi printhead: superior text, images, and barcode quality.
● The die-cast frame and metal cover are designed for harsh working environments.
● 50 resident scalar fonts set a new standard for thermal barcode printing. Font selection is no longer limited; users can create custom labels as needed.

The advantages of the Performance Series printers include:
● Non-proprietary PCL5 – Performance Series printers use the globally recognized standard/laser-compatible printer language PCL, allowing for easy integration into SAP and other network environments.
● State-of-the-art interface – The industry’s most intuitive color touchscreen makes setup and performance enhancement incredibly simple. This printer offers front panel print quality adjustment, automatic label paper calibration and loading, and ribbon tension control.
● Abundant options! Performance Series printers are available with a wide range of optional accessories to meet the most diverse needs. Optional accessories include an internal rewinder, peeler, cutter, USB host interface, GP I/O, 802.11 b/g, audible alarm, and locking clamp.
● Lowest total cost – Performance Series printers cost less than comparable industrial printers, and their durable design ensures reliable performance for many years. Standard components offered with this printer are typically optional on competing printers. The Performance Series printers are the quintessential example of high-performance industrial printers.

Datamax-O’Neil P1725 Detailed Specifications
Product Specifications
● Maximum Print Speed: 10 ips/254 mmps
● Resolution: 300 dpi/11.8 dpmm
● Maximum Print Width: 173.5 mm
● Label Width: 50.8 mm – 180.3 mm ●
Dimensions: 339 mm * 475 mm * 302 mm
● Weight: 24 kg

Physical Characteristics
● Printhead Technology
>> Flat Head
>> Printhead Pressure Adjustment
>> Patent-pending automatic printhead pressure adjustment technology (extends printhead life)
>> Printhead Cooling Fan
● Operating Temperature: Working: 32°F (0°C) to 104°F (40°C); Storage: -4°F (-20°C) to 140°F (60°C)
● Power Supply: Universal (PFC compatible) 90-264 VAC; 47-63 Hz
● Robust die-cast aluminum powder coating frame with metal side cover for label mounting via a large, clear label window.
● Safety: Label cover open warning.
● Control panel: 320 x 240 color graphic touchscreen display with wallpaper
. ● Memory: 32 MB Flash/64 MB SDRAM.
● Real-time clock
: Real-time clock (RTC) with a user-replaceable 3-year battery.
● Paper low sensor and ink ribbon low sensor
. ● Ability to issue paper low notifications, minimizing downtime.
●Printer Type: Thermal printer (optional thermal transfer printhead)

Integrated
●Communication Interfaces
: >>USB 2.0 device – standard
>>10/100 Base-T Ethernet port – standard
>>Wireless module 802.11 b/g – optional
>>Label arm GP I/O and serial (RS-232C) port – optional
>>USB host interface – optional
●Security Protocols: WEP, WPA, WPA2 mode, PSK/Enterprise Security/Encryption 64/128 TKIP/RC4 CCMP/AES authentication LEAP, EAP-PEAP, EAP-FAST, EAP-TTLS, EAP-LEAP, IPV4
●Network/Software Support:
>>DHCP, TCP/IP, UDP, DNS, BOOTP, NTP, SSH
>>SNMP, Durable MIB
>>Embedded Configuration Program: Built-in printer configuration tool
>>Embedded web page
>>Drivers: Windows XP, Windows 7
>>Network management is performed using standard HP-compatible network management tools. Compatible with HP Openview, Tivoli, and other tools.
● Firmware: – Updates: Available online; – Supports common printer command languages: PL-Z (Zebra), PL-B (Boca), PL-I (Intermec)
● Apple
>> Works on MacBook Pro using HP LaserJet Series PCL4/5 drivers
>> SAP certified.

Barcodes/Fonts/Graphics
● Barcodes: Aztec, Codabar, Code 128 Autoswitch, Code 128 Code Set A, Code 128 Code Set B, Code 128 Code Set C, Code 3 of 9, Code 93, DataMatrix, EAN-13, EAN-8, Extended Code 3 of 9, FIM, GS1 Databar (RSS), GS1-128 (UCC/EAN Code 128), HIBC, Interleaved 2 of 5 (with Module 10 checksum), Goods Holder Barcode, MicroPDF417, PDF-417, Planet, Plessey, Postnet, QR Code – Auto Format, Telepen, UPC-A, UPC-E, UPS MaxiCode
● Fonts: 50 standard resident scalar fonts: Albertus Medium, Albertus Extra Bold, Antique Olive, Antique Olive Italic, Antique Olive Bold, Arial, Arial Italic, Arial Bold, Arial Bold Italic, Clarendon Condensed Bold, Coronet, Courier, Courier Italic, Courier Bold, Courier Bold Italic, Garamond Antiqua, Garamond Kursiv, Garamond Halbfett, Garamond Kursiv Halbfett, Letter Gothic, Letter Gothic Italic, Letter Gothic Bold, Marigold, CG Omega, CG Omega Italic, CG Omega Bold, CG Omega Bold Italic, CG Times, CG Times Italic, CG Times Bold, CG Times Bold Italic, CG Triumvirate Bold, CG Triumvirate Bold Condensed, Times New Roman, Times New Roman Italic, Times New Roman Bold, Times New Roman Bold Italic, Univers Medium, Univers Medium Italic, Univers Bold, Univers Bold Italic, Univers Condensed Medium, Univers Condensed Medium Italic, Univers Condensed Bold, Univers Condensed Bold Italic, Symbol,Wingdings, OCR-B, OCR-A
● Downloadable font types: True-Type, PCL Bitmap (300 dpi) or (600 psi on p1115s)
● PCL macros
>> Multiple PCL macros can be stored in flash memory.
>> Overlay macros can be used and stored in flash memory.
● Graphics: Full support for PCL5e and GL/2 graphics capabilities. (Supports several host-based file formats, such as PCX. BMP is not part of the PCL5e standard, but standard applications support and convert it.) Industry-standard printer languages ​​HP PJL, HP PCL 5e, HP GL/2, and HP XL. Printer language can be automatically selected and barcodes can be expanded. Standard two-way communication capability is also provided.

Accessories
● External rewinder
● Label paper collection tray

media supply
● Paper roller feed, die cutting, continuous labels: perforated or continuous hangtag/ticket paper, maximum roll diameter of 8 in/203 mm on a 3 in/76 mm core. Accepts folded label paper.
● Label paper thickness range: 0.0025″ – 0.01″ (0.0635 mm – 0.254 mm)
● Header sensor/label paper detection, duplex printing, adjustable label gap position, cutouts and reflective markings at the head or tail, black ridge markings.
● Label ejection: for optional cutter and peel-off device.
● Ink ribbon
>> Core: 1.0″ (25.4 mm)
>> Length: 1968″ (600 m)
>> Coated side in and coated side out

optional accessories
● External rewind device
● Serial adapter cable option
● Thermal transfer printhead
● Adjustable tension internal motorized rewinder
● Peel-off device
● Cutter
● Cutting tray
● Audible alarm
● Extended 64 MB flash memory

The Datamax-O’Neil Performance Series printers are a brand-new, innovative line designed to address many of the challenges customers have faced with thermal printers over the years.

This powerful series of printers is the easiest to feed, operate, and integrate thermal printer on the market today. The Performance Series printers offer superior print quality, automatic paper feeding, a user-friendly color touchscreen, unparalleled print registration capabilities, and the industry-standard printer language PCL.

PCL is a standardized printer language that runs on various operating systems, making it independent of any application software running on the computer. This ensures faster and easier integration, enabling plug-and-play functionality and putting the printer system to work as soon as possible.

As a member of the Performance Series, this printer features a near-edge printhead and can print on synthetic materials, tags, self-adhesive materials, and plastics.

These high-performance printers adhere to the highest standards, featuring die-cast frames and metal housings, making them ideal for industrial environments. These thermal printers not only offer 4″ (4.16in/105.7mm) or 6″ (6.83in/173.5mm) label printing capabilities, but also offer printing speeds ranging from 6ips/152mmps to 10ips/254mmps and resolutions from 300dpi to 600dpi, meeting the most diverse needs.

Features of the Performance Series printers:
● SAP-enabled printers out of the box, an advantage only true PCL5 thermal barcode printers offer. This eliminates the need for expensive and complex middleware applications in printer networks. All ST Performance Series printers are SAP certified.
● Automatic label loading and calibration frees printer operators from tedious and time-consuming label installation.
● Laser and inkjet printer users not only enjoy the benefits of enhanced thermal barcode printing but also reduce operating costs through seamless integration with true PCL5 devices.
● PCL5e standard language allows users to set up printers faster and with virtually unlimited application options.
● A color graphic touchscreen display with intuitive menu operation and seamless user interface navigation.
● Near-edge printheads maximize label utilization, enabling customers to design and print barcodes carrying detailed information. Flexible multi-media printing technology allows label printing on synthetic materials, hang tags, self-adhesive materials, and plastics.
● Every Performance Series printer comes standard with a 300 dpi printhead, and now users can enjoy the benefits of a high-resolution printhead at the price of a 203 dpi printhead: superior text, images, and barcode quality.
● The die-cast frame and metal cover are designed for harsh working environments.
● 50 resident scalar fonts set a new standard for thermal barcode printing. Font selection is no longer limited; users can create custom labels as needed.

The advantages of the Performance Series printers include:
● Non-proprietary PCL5 – Performance Series printers use the globally recognized standard/laser-compatible printer language PCL, allowing for easy integration into SAP and other network environments.
● State-of-the-art interface – The industry’s most intuitive color touchscreen makes setup and performance enhancement incredibly simple. This printer offers front panel print quality adjustment, automatic label paper calibration and loading, and ribbon tension control.
● Abundant options! Performance Series printers are available with a wide range of optional accessories to meet the most diverse needs. Optional accessories include an internal rewinder, peeler, cutter, USB host interface, GP I/O, 802.11 b/g, audible alarm, and locking clamp.
● Lowest total cost – Performance Series printers cost less than comparable industrial printers, and their durable design ensures reliable performance for many years. Standard components offered with this printer are typically optional on competing printers. The Performance Series printers are the quintessential example of high-performance industrial printers.

Datamax-O’Neil P1115s Detailed Specifications
Product Specifications
● Maximum Print Speed: 6 ips/152 mmps
● Resolution: 600 dpi/23.6 dpmm
● Maximum Print Width: 105.7 mm
● Label Width: 25.4 mm – 118.1 mm ●
Dimensions: 274 mm * 475 mm * 302 mm
● Weight: 19 kg

Physical Characteristics
● Printhead Technology
>> Flat Head
>> Printhead Pressure Adjustment
>> Patent-pending automatic printhead pressure adjustment technology (extends printhead life)
>> Printhead Cooling Fan
● Operating Temperature: Working: 32°F (0°C) to 104°F (40°C); Storage: -4°F (-20°C) to 140°F (60°C)
● Power Supply: Universal (PFC compatible) 90-264 VAC; 47-63 Hz
● Robust die-cast aluminum powder coating frame with metal side cover for label mounting via a large, clear label window.
● Safety: Label cover open warning.
● Control panel: 320 x 240 color graphic touchscreen display with wallpaper
. ● Memory: 32 MB Flash/64 MB SDRAM.
● Real-time clock
: Real-time clock (RTC) with a user-replaceable 3-year battery.
● Paper low sensor and ink ribbon low sensor
. ● Ability to issue paper low notifications, minimizing downtime.
●Printer Type: Thermal printer (optional thermal transfer printhead)

Integrated
●Communication Interfaces
: >>USB 2.0 device – standard
>>10/100 Base-T Ethernet port – standard
>>Wireless module 802.11 b/g – optional
>>Label arm GP I/O and serial (RS-232C) port – optional
>>USB host interface – optional
●Security Protocols: WEP, WPA, WPA2 mode, PSK/Enterprise Security/Encryption 64/128 TKIP/RC4 CCMP/AES authentication LEAP, EAP-PEAP, EAP-FAST, EAP-TTLS, EAP-LEAP, IPV4
●Network/Software Support:
>>DHCP, TCP/IP, UDP, DNS, BOOTP, NTP, SSH
>>SNMP, Durable MIB
>>Embedded Configuration Program: Built-in printer configuration tool
>>Embedded web page
>>Drivers: Windows XP, Windows 7
>>Network management is performed using standard HP-compatible network management tools. Compatible with HP Openview, Tivoli, and other tools.
● Firmware: – Updates: Available online; – Supports common printer command languages: PL-Z (Zebra), PL-B (Boca), PL-I (Intermec)
● Apple
>> Works on MacBook Pro using HP LaserJet Series PCL4/5 drivers
>> SAP certified.

Barcodes/Fonts/Graphics
● Barcodes: Aztec, Codabar, Code 128 Autoswitch, Code 128 Code Set A, Code 128 Code Set B, Code 128 Code Set C, Code 3 of 9, Code 93, DataMatrix, EAN-13, EAN-8, Extended Code 3 of 9, FIM, GS1 Databar (RSS), GS1-128 (UCC/EAN Code 128), HIBC, Interleaved 2 of 5 (with Module 10 checksum), Goods Holder Barcode, MicroPDF417, PDF-417, Planet, Plessey, Postnet, QR Code – Auto Format, Telepen, UPC-A, UPC-E, UPS MaxiCode
● Fonts: 50 standard resident scalar fonts: Albertus Medium, Albertus Extra Bold, Antique Olive, Antique Olive Italic, Antique Olive Bold, Arial, Arial Italic, Arial Bold, Arial Bold Italic, Clarendon Condensed Bold, Coronet, Courier, Courier Italic, Courier Bold, Courier Bold Italic, Garamond Antiqua, Garamond Kursiv, Garamond Halbfett, Garamond Kursiv Halbfett, Letter Gothic, Letter Gothic Italic, Letter Gothic Bold, Marigold, CG Omega, CG Omega Italic, CG Omega Bold, CG Omega Bold Italic, CG Times, CG Times Italic, CG Times Bold, CG Times Bold Italic, CG Triumvirate Bold, CG Triumvirate Bold Condensed, Times New Roman, Times New Roman Italic, Times New Roman Bold, Times New Roman Bold Italic, Univers Medium, Univers Medium Italic, Univers Bold, Univers Bold Italic, Univers Condensed Medium, Univers Condensed Medium Italic, Univers Condensed Bold, Univers Condensed Bold Italic, Symbol,Wingdings, OCR-B, OCR-A
● Downloadable font types: True-Type, PCL Bitmap (300 dpi) or (600 psi on p1115s)
● PCL macros
>> Multiple PCL macros can be stored in flash memory.
>> Overlay macros can be used and stored in flash memory.
● Graphics: Full support for PCL5e and GL/2 graphics capabilities. (Supports several host-based file formats, such as PCX. BMP is not part of the PCL5e standard, but standard applications support and convert it.) Industry-standard printer languages ​​HP PJL, HP PCL 5e, HP GL/2, and HP XL. Printer language can be automatically selected and barcodes can be expanded. Standard two-way communication capability is also provided.

Accessories
● External rewinder
● Label paper collection tray

media supply
● Paper roller feed, die cutting, continuous labels: perforated or continuous hangtag/ticket paper, maximum roll diameter of 8 in/203 mm on a 3 in/76 mm core. Accepts folded label paper.
● Label paper thickness range: 0.0025″ – 0.01″ (0.0635 mm – 0.254 mm)
● Header sensor/label paper detection, duplex printing, adjustable label gap position, cutouts and reflective markings at the head or tail, black ridge markings.
● Label paper ejection: for optional cutter and peel-off device.
● Ink ribbon
>> Core: 1.0″ (25.4 mm)
>> Length: 1968″ (600 m)
>> Coated side in and coated side out

optional accessories
● External rewind device
● Serial adapter cable option
● Thermal transfer printhead
● Adjustable tension internal motorized rewinder
● Peel-off device
● Cutter
● Cutting tray
● Audible alarm
● 1″ or 1.5″ label paper reel connector
● Extended 64 MB flash memory

The Datamax-O’Neil Performance Series printers are a brand-new, innovative line designed to address many of the challenges customers have faced with thermal printers over the years.

This powerful series of printers is the easiest to feed, operate, and integrate thermal printer on the market today. The Performance Series printers offer superior print quality, automatic paper feeding, a user-friendly color touchscreen, unparalleled print registration capabilities, and the industry-standard printer language PCL.

PCL is a standardized printer language that runs on various operating systems, making it independent of any application software running on the computer. This ensures faster and easier integration, enabling plug-and-play functionality and putting the printer system to work as soon as possible.

As a member of the Performance Series, this printer features a near-edge printhead and can print on synthetic materials, tags, self-adhesive materials, and plastics.

These high-performance printers adhere to the highest standards, featuring die-cast frames and metal housings, making them ideal for industrial environments. These thermal printers not only offer 4″ (4.16in/105.7mm) or 6″ (6.83in/173.5mm) label printing capabilities, but also offer printing speeds ranging from 6ips/152mmps to 10ips/254mmps and resolutions from 300dpi to 600dpi, meeting the most diverse needs.

Features of the Performance Series printers:
● SAP-enabled printers out of the box, an advantage only true PCL5 thermal barcode printers offer. This eliminates the need for expensive and complex middleware applications in printer networks. All ST Performance Series printers are SAP certified.
● Automatic label loading and calibration frees printer operators from tedious and time-consuming label installation.
● Laser and inkjet printer users not only enjoy the benefits of enhanced thermal barcode printing but also reduce operating costs through seamless integration with true PCL5 devices.
● PCL5e standard language allows users to set up printers faster and with virtually unlimited application options.
● A color graphic touchscreen display with intuitive menu operation and seamless user interface navigation.
● Near-edge printheads maximize label utilization, enabling customers to design and print barcodes carrying detailed information. Flexible multi-media printing technology allows label printing on synthetic materials, hang tags, self-adhesive materials, and plastics.
● Every Performance Series printer comes standard with a 300 dpi printhead, and now users can enjoy the benefits of a high-resolution printhead at the price of a 203 dpi printhead: superior text, images, and barcode quality.
● The die-cast frame and metal cover are designed for harsh working environments.
● 50 resident scalar fonts set a new standard for thermal barcode printing. Font selection is no longer limited; users can create custom labels as needed.

The advantages of the Performance Series printers include:
● Non-proprietary PCL5 – Performance Series printers use the globally recognized standard/laser-compatible printer language PCL, allowing for easy integration into SAP and other network environments.
● State-of-the-art interface – The industry’s most intuitive color touchscreen makes setup and performance enhancement incredibly simple. This printer offers front panel print quality adjustment, automatic label paper calibration and loading, and ribbon tension control.
● Abundant options! Performance Series printers are available with a wide range of optional accessories to meet the most diverse needs. Optional accessories include an internal rewinder, peeler, cutter, USB host interface, GP I/O, 802.11 b/g, audible alarm, and locking clamp.
● Lowest total cost – Performance Series printers cost less than comparable industrial printers, and their durable design ensures reliable performance for many years. Standard components offered with this printer are typically optional on competing printers. The Performance Series printers are the quintessential example of high-performance industrial printers.

Datamax-O’Neil P1125 Detailed Specifications
Product Specifications
● Maximum Print Speed: 10ips/254mmps
● Resolution: 300dpi/11.8dpmm
● Maximum Print Width: 108.5mm
● Label Width: 25.4mm-118.1mm
● Dimensions: 274mm*475mm*302mm
● Weight: 19kg

Physical Characteristics
● Printhead Technology
>> Flat Head
>> Printhead Pressure Adjustment
>> Patent-pending automatic printhead pressure adjustment technology (extends printhead life)
>> Printhead Cooling Fan
● Operating Temperature: Working: 32°F (0°C) to 104°F (40°C); Storage: -4°F (-20°C) to 140°F (60°C)
● Power Supply: Universal (PFC compatible) 90-264 VAC; 47-63 Hz
● Robust die-cast aluminum powder coating frame with metal side cover for label mounting via a large, clear label window.
● Safety: Label cover open warning.
● Control panel: 320 x 240 color graphic touchscreen display with wallpaper
. ● Memory: 32 MB Flash/64 MB SDRAM.
● Real-time clock
: Real-time clock (RTC) with a user-replaceable 3-year battery.
● Paper low sensor and ink ribbon low sensor
. ● Ability to issue paper low notifications, minimizing downtime.
●Printer Type: Thermal printer (optional thermal transfer printhead)

Integrated
●Communication Interfaces
: >>USB 2.0 device – standard
>>10/100 Base-T Ethernet port – standard
>>Wireless module 802.11 b/g – optional
>>Label arm GP I/O and serial (RS-232C) port – optional
>>USB host interface – optional
●Security Protocols: WEP, WPA, WPA2 mode, PSK/Enterprise Security/Encryption 64/128 TKIP/RC4 CCMP/AES authentication LEAP, EAP-PEAP, EAP-FAST, EAP-TTLS, EAP-LEAP, IPV4
●Network/Software Support:
>>DHCP, TCP/IP, UDP, DNS, BOOTP, NTP, SSH
>>SNMP, Durable MIB
>>Embedded Configuration Program: Built-in printer configuration tool
>>Embedded web page
>>Drivers: Windows XP, Windows 7
>>Network management is performed using standard HP-compatible network management tools. Compatible with HP Openview, Tivoli, and other tools.
● Firmware: – Updates: Available online; – Supports common printer command languages: PL-Z (Zebra), PL-B (Boca), PL-I (Intermec)
● Apple
>> Works on MacBook Pro using HP LaserJet Series PCL4/5 drivers
>> SAP certified.

Barcodes/Fonts/Graphics
● Barcodes: Aztec, Codabar, Code 128 Autoswitch, Code 128 Code Set A, Code 128 Code Set B, Code 128 Code Set C, Code 3 of 9, Code 93, DataMatrix, EAN-13, EAN-8, Extended Code 3 of 9, FIM, GS1 Databar (RSS), GS1-128 (UCC/EAN Code 128), HIBC, Interleaved 2 of 5 (with Module 10 checksum), Goods Holder Barcode, MicroPDF417, PDF-417, Planet, Plessey, Postnet, QR Code – Auto Format, Telepen, UPC-A, UPC-E, UPS MaxiCode
● Fonts: 50 standard resident scalar fonts: Albertus Medium, Albertus Extra Bold, Antique Olive, Antique Olive Italic, Antique Olive Bold, Arial, Arial Italic, Arial Bold, Arial Bold Italic, Clarendon Condensed Bold, Coronet, Courier, Courier Italic, Courier Bold, Courier Bold Italic, Garamond Antiqua, Garamond Kursiv, Garamond Halbfett, Garamond Kursiv Halbfett, Letter Gothic, Letter Gothic Italic, Letter Gothic Bold, Marigold, CG Omega, CG Omega Italic, CG Omega Bold, CG Omega Bold Italic, CG Times, CG Times Italic, CG Times Bold, CG Times Bold Italic, CG Triumvirate Bold, CG Triumvirate Bold Condensed, Times New Roman, Times New Roman Italic, Times New Roman Bold, Times New Roman Bold Italic, Univers Medium, Univers Medium Italic, Univers Bold, Univers Bold Italic, Univers Condensed Medium, Univers Condensed Medium Italic, Univers Condensed Bold, Univers Condensed Bold Italic, Symbol,Wingdings, OCR-B, OCR-A
● Downloadable font types: True-Type, PCL Bitmap (300 dpi) or (600 psi on p1115s)
● PCL macros
>> Multiple PCL macros can be stored in flash memory.
>> Overlay macros can be used and stored in flash memory.
● Graphics: Full support for PCL5e and GL/2 graphics capabilities. (Supports several host-based file formats, such as PCX. BMP is not part of the PCL5e standard, but standard applications support and convert it.) Industry-standard printer languages ​​HP PJL, HP PCL 5e, HP GL/2, and HP XL. Printer language can be automatically selected and barcodes can be expanded. Standard two-way communication capability is also provided.

Accessories
● External rewinder
● Label paper collection tray

media supply
● Paper roller feed, die cutting, continuous labels: perforated or continuous hangtag/ticket paper, maximum roll diameter of 8 in/203 mm on a 3 in/76 mm core. Accepts folded label paper.
● Label paper thickness range: 0.0025″ – 0.01″ (0.0635 mm – 0.254 mm)
● Header sensor/label paper detection, duplex printing, adjustable label gap position, cutouts and reflective markings at the head or tail, black ridge markings.
● Label paper ejection: for optional cutter and peel-off device.
● Ink ribbon
>> Core: 1.0″ (25.4 mm)
>> Length: 1968″ (600 m)
>> Coated side in and coated side out

optional accessories
● External rewind device
● Serial adapter cable option
● Thermal transfer printhead
● Adjustable tension internal motorized rewinder
● Peel-off device
● Cutter
● Cutting tray
● Audible alarm
● 1″ or 1.5″ label paper reel connector
● Extended 64 MB flash memory

The Datamax-O’Neil Performance Series printers are a brand-new, innovative line designed to address many of the challenges customers have faced with thermal printers over the years. This powerful series of printers is the easiest to feed, operate, and integrate thermal printer on the market today.

The Performance Series printers offer superior print quality, automatic paper feeding, a user-friendly color touchscreen, unparalleled print registration capabilities, and the industry-standard printer language PCL.

PCL is a standardized printer language that runs on various operating systems, making it independent of any application software running on the computer. This ensures faster and easier integration, enabling plug-and-play functionality and putting the printer system to work as soon as possible.

As a member of the Performance Series, this printer features a near-edge printhead and can print on synthetic materials, tags, self-adhesive materials, and plastics.

These high-performance printers adhere to the highest standards, featuring die-cast frames and metal housings, making them ideal for industrial environments. These thermal printers not only offer 4″ (4.16in/105.7mm) or 6″ (6.83in/173.5mm) label printing capabilities, but also offer printing speeds ranging from 6ips/152mmps to 10ips/254mmps and resolutions from 300dpi to 600dpi, meeting the most diverse needs.

Features of the Performance Series printers:
● SAP-enabled printers out of the box, an advantage only true PCL5 thermal barcode printers offer. This eliminates the need for expensive and complex middleware applications in printer networks. All ST Performance Series printers are SAP certified.
● Automatic label loading and calibration frees printer operators from tedious and time-consuming label installation.
● Laser and inkjet printer users not only enjoy the benefits of enhanced thermal barcode printing but also reduce operating costs through seamless integration with true PCL5 devices.
● PCL5e standard language allows users to set up printers faster and with virtually unlimited application options.
● A color graphic touchscreen display with intuitive menu operation and seamless user interface navigation.
● Near-edge printheads maximize label utilization, enabling customers to design and print barcodes carrying detailed information. Flexible multi-media printing technology allows label printing on synthetic materials, hang tags, self-adhesive materials, and plastics.
● Every Performance Series printer comes standard with a 300 dpi printhead, and now users can enjoy the benefits of a high-resolution printhead at the price of a 203 dpi printhead: superior text, images, and barcode quality.
● The die-cast frame and metal cover are designed for harsh working environments.
● 50 resident scalar fonts set a new standard for thermal barcode printing. Font selection is no longer limited; users can create custom labels as needed.

The advantages of the Performance Series printers include:
● Non-proprietary PCL5 – Performance Series printers use the globally recognized standard/laser-compatible printer language PCL, allowing for easy integration into SAP and other network environments.
● State-of-the-art interface – The industry’s most intuitive color touchscreen makes setup and performance enhancement incredibly simple. This printer offers front panel print quality adjustment, automatic label paper calibration and loading, and ribbon tension control.
● Abundant options! Performance Series printers are available with a wide range of optional accessories to meet the most diverse needs. Optional accessories include an internal rewinder, peeler, cutter, USB host interface, GP I/O, 802.11 b/g, audible alarm, and locking clamp.
● Lowest total cost – Performance Series printers cost less than comparable industrial printers, and their durable design ensures reliable performance for many years. Standard components offered with this printer are typically optional on competing printers. The Performance Series printers are the quintessential example of high-performance industrial printers.

Datamax-O’Neil P1115 Detailed Specifications
Product Specifications
● Maximum Print Speed: 6 ips/152 mmps
● Resolution: 300 dpi/11.8 dpmm
● Maximum Print Width: 105.7 mm
● Label Width: 25.4 mm – 118.1 mm ●
Dimensions: 274 mm * 475 mm * 302 mm
● Weight: 19 kg

Physical Characteristics
● Printhead Technology
>> Flat Head
>> Adjustable Printhead Pressure
● Operating Temperature: Working: 32°F (0°C) to 104°F (40°C); Storage: -4°F (-20°C) to 140°F (60°C)
● Power Supply: Universal (PFC compatible) 90-264 VAC; 47-63 Hz
● Rugged die-cast aluminum powder coating frame with metal side cover for label mounting through a large transparent label window
● Safety: Label cover open warning
● Control Panel: 320 x 240 with wallpaper Color graphic touchscreen display
● Memory: 32 MB Flash / 64 MB SDRAM
● Real-time clock
>> Real-time clock (RTC) with a user-replaceable battery with a 3-year operating life
>> Paper low sensor and ink ribbon low sensor
>> Capable of issuing paper low notifications to reduce downtime.
●Printer Type: Thermal printer (optional thermal transfer printhead)

Integrated
●Communication Interfaces
: >>USB 2.0 device – standard
>>10/100 Base-T Ethernet port – standard
>>Wireless module 802.11 b/g – optional
>>Label arm GP I/O and serial (RS-232C) port – optional
>>USB host interface – optional
●Security Protocols: WEP, WPA, WPA2 mode, PSK/Enterprise Security/Encryption 64/128 TKIP/RC4 CCMP/AES authentication LEAP, EAP-PEAP, EAP-FAST, EAP-TTLS, EAP-LEAP, IPV4
●Network/Software Support:
>>DHCP, TCP/IP, UDP, DNS, BOOTP, NTP, SSH
>>SNMP, Durable MIB
>>Embedded Configuration Program: Built-in printer configuration tool
>>Embedded web page
>>Drivers: Windows XP, Windows 7
>>Network management is performed using standard HP-compatible network management tools. Compatible with HP Openview, Tivoli, and other tools.
● Firmware: – Updates: Available online; – Supports common printer command languages: PL-Z (Zebra), PL-B (Boca), PL-I (Intermec)
● Apple
>> Works on MacBook Pro using HP LaserJet Series PCL4/5 drivers
>> SAP certified.

Barcodes/Fonts/Graphics
● Barcodes: Aztec, Codabar, Code 128 Autoswitch, Code 128 Code Set A, Code 128 Code Set B, Code 128 Code Set C, Code 3 of 9, Code 93, DataMatrix, EAN-13, EAN-8, Extended Code 3 of 9, FIM, GS1 Databar (RSS), GS1-128 (UCC/EAN Code 128), HIBC, Interleaved 2 of 5 (with Module 10 checksum), Goods Holder Barcode, MicroPDF417, PDF-417, Planet, Plessey, Postnet, QR Code – Auto Format, Telepen, UPC-A, UPC-E, UPS MaxiCode
● Fonts: 50 standard resident scalar fonts: Albertus Medium, Albertus Extra Bold, Antique Olive, Antique Olive Italic, Antique Olive Bold, Arial, Arial Italic, Arial Bold, Arial Bold Italic, Clarendon Condensed Bold, Coronet, Courier, Courier Italic, Courier Bold, Courier Bold Italic, Garamond Antiqua, Garamond Kursiv, Garamond Halbfett, Garamond Kursiv Halbfett, Letter Gothic, Letter Gothic Italic, Letter Gothic Bold, Marigold, CG Omega, CG Omega Italic, CG Omega Bold, CG Omega Bold Italic, CG Times, CG Times Italic, CG Times Bold, CG Times Bold Italic, CG Triumvirate Bold, CG Triumvirate Bold Condensed, Times New Roman, Times New Roman Italic, Times New Roman Bold, Times New Roman Bold Italic, Univers Medium, Univers Medium Italic, Univers Bold, Univers Bold Italic, Univers Condensed Medium, Univers Condensed Medium Italic, Univers Condensed Bold, Univers Condensed Bold Italic, Symbol, Wingdings, OCR-B,OCR-A
● Downloadable font types: True-Type, PCL Bitmap (300 dpi) or (600 psi on p1115s)
● PCL macros
>> Multiple PCL macros can be stored in flash memory.
>> Overlay macros can be used and stored in flash memory.
● Graphics: Full support for PCL5e and GL/2 graphics capabilities. (Supports several host-based file formats, such as PCX. BMP is not part of the PCL5e standard, but standard applications support and convert it.) Industry-standard printer languages ​​HP PJL, HP PCL 5e, HP GL/2, and HP XL; printer language can be automatically selected and barcodes can be expanded. Standard two-way communication capability is also provided.

Accessories
● External rewinder
● Label paper collection tray

media supply
● Paper roller feed, die-cutting, continuous labels: perforated or continuous hangtag/ticket paper, maximum roll diameter on 3 in/76 mm core is 8 in/203 mm. Accepts folded label paper.
● Label paper thickness range: 0.0025″ – 0.01″ (0.0635 mm – 0.254 mm)
● Header sensor/label paper detection, duplex printing, adjustable label gap position, cutouts and reflective markings at the head or tail, black ridge markings.
● Label paper ejection: for optional cutter and peel-off device.
● Ink ribbon
>> Core: 1.0″ (25.4 mm)
>> Length: 1968″ (600 m)
>> Coated side in and coated side out

optional accessories
● External rewind device
● Serial adapter cable option
● Thermal transfer printhead
● Adjustable tension internal motorized rewinder
● Peel-off device
● Cutter
● Cutting tray
● Audible alarm
● 1″ or 1.5″ label paper reel connector
● Extended 64 MB flash memory

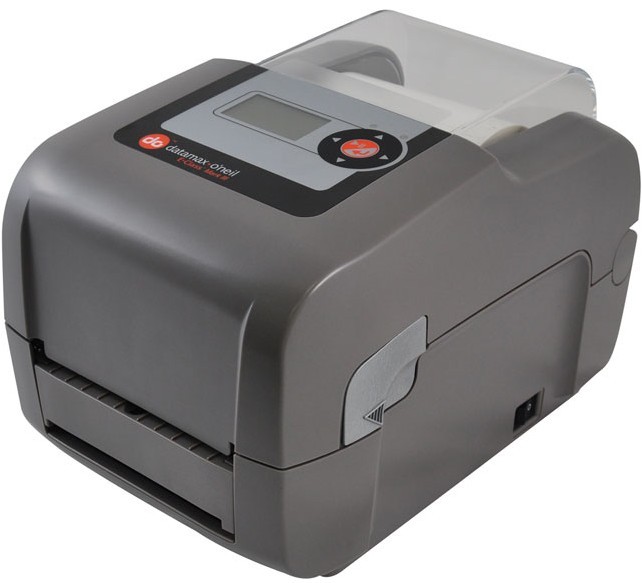

The Datamax-O’Neil E-Class Mark III is a series of compact desktop thermal printers designed to meet the needs of various industries and applications for highly reliable and cost-effective barcode printers.

Leveraging its expertise in industrial-grade printer technology, Datamax-O’Neil has created an entry-level printer with features and reliability typically found only in higher-end models.

The E-Class Mark III is affordable, easy to use, and has low maintenance costs.

The E-Class Mark III is easy to use, loads media quickly, and features an interactive LCD screen. Users will also find significantly lower daily operating costs due to its larger media and ribbon capacity. The E-Class Mark III is one of the most cost-effective barcode printers on the market. It is attractively priced, well-designed, reliable, and has longer uptime than other printers.

The Datamax-O’Neil E-4305L Super Professional 300dpi desktop barcode printer is suitable for applications requiring a large internal media capacity, including a larger inner roller, internal folding media, and an optional rack lock. It is also suitable for complex applications requiring high interface capabilities, higher performance, and wireless communication. It features a graphic display with a navigation menu interface, a real-time clock, voice alarms, a USB host interface, faster printing speeds, and optional wireless LAN and Bluetooth communication ports.

Datamax-O’Neil E-4305L Features:
● Easy Loading
Horizontal center-opening cabinet with rear-hinged connection for easy loading of ribbons and labels.
● Robust Construction
Double-wall construction with coaxial hinges ensures a durable and seamless build.
● Panoramic Media Window
Operators can visually check media levels without interrupting print jobs.
● Overflow Protection
The user interface display is sealed to protect sensitive user controls from liquids and debris.
● Lower Ribbon Costs Larger
, standardized ribbons with a one-inch core cost less than typical, smaller desktop printer ribbons.
● Larger Media Capacity
Rolls The E-4305L offers greater media capacity, reducing downtime and extending uptime.
● Internal Folding Stack
The E-4305L protects media from environmental influences and eliminates media curling.
● Easy Maintenance
Replacing critical components, printheads, and pressure rollers requires no tools or experience. ● Large graphic display screen:
Enables quick and easy changes with clear status indicators.
● Optional
802.11 a/b/g wireless network and Bluetooth communication port for easy sharing, management, and placement of the printer wherever you want.

Datamax-O’Neil E-4305L Detailed Specifications

Printing Technology
● Printing Method: Thermal printing, with optional thermal transfer printing
● Resolution: 300 dpi (12 dots/mm)
● Memory: 32MB DRAM, 64MB Flash
● Maximum Print Width: 106mm
● Print Length Range: 9.5mm-2514mm
● Maximum Print Speed: 5 inches/second (127 millimeters/second)

Physical Characteristics
● Color: Pantone Warm Grey
● Operating Temperature: 4°C – 35°C
● Construction: Mid-mounted housing with coaxial hinge at the rear; double-walled high-strength thermoplastic; transparent panoramic media window
● Power Supply: Auto-ranging power converter
● Indicator Lights/Display: Two 3-color indicator lights, multi-line monochrome graphic display, configuration menu system, voice alarm, real-time clock
● Dimensions: 203mm wide * 243mm high * 356mm deep
● Weight: 2.5kg

Integrated
● Communication Ports: RS232 serial port, USB 2.0, parallel port, Ethernet interface, USB host port
● Optional Communication Ports: 802.11a/b/g wireless LAN port, Bluetooth v2.0
● 802.11a/b/g: – Network Standard: IEEE 802.11a/b/g; – Wireless Access Modes: Infrastructure and Point-to-Point; – Security Protocols: WEP/WPA/WPA2
● Software: – DMX Config: Printer configuration tool; – DMX Net Manager: Network printer management tool; – Embedded Configurator: Built-in printer configuration tool; – Drivers: Windows 7, Windows XP, Windows Vista, Windows NT
● Firmware: – Updates: Available online; – Supports common printer command languages: PL-Z (Zebra), PL-B (Boca), PL-I (Intermec), PL-E (Eltron)

Barcodes/Fonts/Graphics
● Barcodes: – 1D: code3 of 9, UPC-A, UPC-E, I 2 OF 5, code128, EAN-13, EAN-8, HBIC, Codabar, I 2 OF 5 (with Module 10 checksum), Plessey, 2-digit UPC appendix, 5-digit UPC appendix, code93, Postnet, UCC/EAN Code128, K0Mart NON EDI, Telepen; – 2D: UPS Maxicode, FIM, PDF417, DataMatrix, QR code, Aztec, Code128 (with automatic subset switching), GS1 Databar (replaces RSS), TCIF Linked Bar code3 of 9 (TLC39), MicroPDF417
● Resident Fonts: 10 alphanumeric fonts from 2mm to 6mm, including OCR-A, OCR-B, and AGFA’s CG Triumvirate smooth font.
● Downloadable Font Types: TrueType, AGFA Intellifont, Bitmap
● Character Set: – Modified IBM Code Page 850, containing characters used in English, most European, Nordic, and Spanish-speaking countries; – 50 resident code pages
● Font Expansion/Rotation: All fonts can be expanded vertically and horizontally by 24 times; fonts and graphics can be printed in four directions: 0°, 90°, 180°, and 270°
● Supported Graphics: PCX, BMP, and IMG format files
● Plastic Field of View/Mirror: Any font or graphic field of view can be printed as a normal image or an inverted image.

Media
● Media Type: – Continuous or folded; – Inner roll label, outer roll label; – Folded internal media; – Perforations between adjacent labels for easy separation; – Spacing, black bar, cut, and hole indexing functions
● Media Width Range: 19mm-111.76mm
● Media Thickness Range: 0.0635mm-0.254mm
● Maximum Internal Media Roll Capacity: Outer diameter 182.8mm
● Media Sensing: Fixed or adjustable sensor capable of detecting gaps between labels, black bars on the backing, and cuts or holes
● Label Paper Removal: Can be used with optional cutters or tearing operations
● Ribbon Type: Coated side facing inward or outward
● Ribbon Width Range: 25mm-109mm
● Ribbon Core: 13mm-25mm
● Ribbon Roll Core [Diameter * Length]: 13mm * 109mm; 25mm * 25-109mm

Accessories
● External rewinder
● Battery box
● External media holder

Options
● Thermal transfer function (including 1-inch ribbon adapter)
● Wireless LAN port
● Bluetooth v2.0
● Tag peeler with sensing area
● Cutter with sensing area

The Datamax-O’Neil E-Class Mark III is a series of compact desktop thermal printers designed to meet the needs of various industries and applications for highly reliable and cost-effective barcode printers.

Leveraging its expertise in industrial-grade printer technology, Datamax-O’Neil has created an entry-level printer with features and reliability typically found only in higher-end models.

The E-Class Mark III is affordable, easy to use, and has low maintenance costs.

The E-Class Mark III is easy to use, loads media quickly, and features an interactive LCD screen. Users will also find significantly lower daily operating costs due to its larger media and ribbon capacity. The E-Class Mark III is one of the most cost-effective barcode printers on the market. It is attractively priced, well-designed, reliable, and has longer uptime than other printers.

The Datamax-O’Neil E-4206L Super Professional 203dpi desktop barcode printer is suitable for applications requiring a large internal media capacity, including a larger inner roller, internal folded media, and an optional rack lock. It is also suitable for complex applications requiring high interface capabilities, higher performance, and wireless communication. It features a graphic display with a navigation menu interface, a real-time clock, voice alarms, a USB host interface, faster printing speeds, and optional wireless LAN and Bluetooth communication ports.

Datamax-O’Neil E-4206L Features:
● Easy Loading
Horizontal center-opening cabinet with rear-hinged connection for easy loading of ribbons and labels.
● Robust Construction
Double-wall construction with coaxial hinges ensures a durable and seamless build.
● Panoramic Media Window
Operators can visually check media levels without interrupting the print job.
● Overflow Protection
The user interface display is sealed to protect sensitive user controls from liquids and debris.
● Lower Ribbon Costs
Larger, standardized ribbons with a one-inch core cost less than typical, smaller desktop printer ribbons.
● Larger Media Capacity Rolls
The E-4206L offers greater media capacity, reducing downtime and extending uptime.
● Internal Folding Stack
The E-4206L protects media from environmental influences and eliminates media curling.
● Easy Maintenance
Replacing critical components, printheads, and pressure rollers requires no tools or experience. ● Large graphic display screen:
Enables quick and easy changes with clear status indicators.
● Optional
802.11 a/b/g wireless network and Bluetooth communication port for easy sharing, management, and placement of the printer wherever you want.

Datamax-O’Neil E-4206L Detailed Specifications

Printing Technology
● Printing Method: Thermal printing, with optional thermal transfer printing
● Resolution: 203 dpi (8 dots/mm)
● Memory: 32MB DRAM, 64MB Flash
● Maximum Print Width: 108mm
● Print Length Range: 9.5mm-2514mm
● Maximum Print Speed: 6 inches/second (152 millimeters/second)

Physical Characteristics
● Color: Pantone Warm Grey
● Operating Temperature: 4°C – 35°C
● Construction: Mid-mounted housing with coaxial hinge at the rear; double-walled high-strength thermoplastic; transparent panoramic media window
● Power Supply: Auto-ranging power converter
● Indicator Lights/Display: Two 3-color indicator lights, multi-line monochrome graphic display, configuration menu system, voice alarm, real-time clock
● Dimensions: 203mm wide * 243mm high * 356mm deep
● Weight: 2.5kg

Integrated
● Communication Ports: RS232 serial port, USB 2.0, parallel port, Ethernet interface, USB host port
● Optional Communication Ports: 802.11a/b/g wireless LAN port, Bluetooth v2.0
● 802.11a/b/g: – Network Standard: IEEE 802.11a/b/g; – Wireless Access Modes: Infrastructure and Point-to-Point; – Security Protocols: WEP/WPA/WPA2
● Software: – DMX Config: Printer configuration tool; – DMX Net Manager: Network printer management tool; – Embedded Configurator: Built-in printer configuration tool; – Drivers: Windows 7, Windows XP, Windows Vista, Windows NT
● Firmware: – Updates: Available online; – Supports common printer command languages: PL-Z (Zebra), PL-B (Boca), PL-I (Intermec), PL-E (Eltron)

Barcodes/Fonts/Graphics
● Barcodes: – 1D: code3 of 9, UPC-A, UPC-E, I 2 OF 5, code128, EAN-13, EAN-8, HBIC, Codabar, I 2 OF 5 (with Module 10 checksum), Plessey, 2-digit UPC appendix, 5-digit UPC appendix, code93, Postnet, UCC/EAN Code128, K0Mart NON EDI, Telepen; – 2D: UPS Maxicode, FIM, PDF417, DataMatrix, QR code, Aztec, Code128 (with automatic subset switching), GS1 Databar (replaces RSS), TCIF Linked Bar code3 of 9 (TLC39), MicroPDF417
● Resident Fonts: 10 alphanumeric fonts from 2mm to 6mm, including OCR-A, OCR-B, and AGFA’s CG Triumvirate smooth font.
● Downloadable Font Types: TrueType, AGFA Intellifont, Bitmap
● Character Set: – Modified IBM Code Page 850, containing characters used in English, most European, Nordic, and Spanish-speaking countries; – 50 resident code pages
● Font Expansion/Rotation: All fonts can be expanded vertically and horizontally by 24 times; fonts and graphics can be printed in four directions: 0°, 90°, 180°, and 270°
● Supported Graphics: PCX, BMP, and IMG format files
● Plastic Field of View/Mirror: Any font or graphic field of view can be printed as a normal image or an inverted image.

Media
● Media Type: – Continuous or folded; – Inner roll label, outer roll label; – Folded internal media; – Perforations between adjacent labels for easy separation; – Spacing, black bar, cut, and hole indexing functions
● Media Width Range: 19mm-111.76mm
● Media Thickness Range: 0.0635mm-0.254mm
● Maximum Internal Media Roll Capacity: Outer diameter 182.8mm
● Media Sensing: Fixed or adjustable sensor capable of detecting gaps between labels, black bars on the backing, and cuts or holes
● Label Paper Removal: Can be used with optional cutters or tearing operations
● Ribbon Type: Coated side facing inward or outward
● Ribbon Width Range: 25mm-109mm
● Ribbon Core: 13mm-25mm
● Ribbon Roll Core [Diameter * Length]: 13mm * 109mm; 25mm * 25-109mm

Accessories
● External rewinder
● Battery box
● External media holder

Options
● Thermal transfer function (including 1-inch ribbon adapter)
● Wireless LAN port
● Bluetooth v2.0
● Tag peeler with sensing area
● Cutter with sensing area

The Datamax-O’Neil E-Class Mark III is a series of compact desktop thermal printers designed to meet the needs of various industries and applications for highly reliable and cost-effective barcode printers.

Leveraging its expertise in industrial-grade printer technology, Datamax-O’Neil has created an entry-level printer with features and reliability typically found only in higher-end models.

The E-Class Mark III is affordable, easy to use, and has low maintenance costs.

The E-Class Mark III is easy to use, loads media quickly, and features an interactive LCD screen. Users will also find significantly lower daily operating costs due to its larger media and ribbon capacity. The E-Class Mark III is one of the most cost-effective barcode printers on the market. It is attractively priced, well-designed, reliable, and has longer uptime than other printers.

The Datamax-O’Neil E-4305P Professional 300dpi desktop barcode printer is suitable for complex applications requiring high interface capabilities, higher performance, and wireless communication. It features a graphic display with a navigation menu interface, a real-time clock, voice alarms, a USB host interface, faster printing speeds, and optional wireless LAN and Bluetooth communication ports.

Datamax-O’Neil E-4305P Features:
● Easy Loading
Horizontal center-opening cabinet with rear-hinged connection for easy loading of ribbons and labels.
● Robust Construction
Double-wall construction with coaxial hinges ensures a durable and seamless build.
● Panoramic Media Window
Operators can visually check media levels without interrupting print jobs.
● Spill Protection
The user interface display is sealed to protect sensitive user controls from liquids and debris.
● Lower Ribbon Costs Larger
, standardized ribbons with a one-inch core are less expensive than typical, smaller desktop printer ribbons.
● High-Capacity Media Rolls
(127mm media capacity) reduce downtime and extend uptime.
● Easy Maintenance
Replacing critical components, printheads, and pressure rollers requires no tools or experience. ● Large Graphic Display
Quick and easy changes with clear status indicators.
● Optional
802.11 a/b/g Wi-Fi and Bluetooth ports allow for easy sharing, management, and placement of the printer wherever you want.

Datamax-O’Neil E-4305P Detailed Specifications

Printing Technology
● Printing Method: Thermal printing, with optional thermal transfer printing
● Resolution: 300 dpi (12 dots/mm)
● Memory: 32MB DRAM, 64MB Flash
● Maximum Print Width: 106mm
● Print Length Range: 9.5mm-2514mm
● Maximum Print Speed: 5 inches/second (127 millimeters/second)

Physical Characteristics
● Color: Pantone Warm Grey
● Operating Temperature: 4°C – 35°C
● Construction: Mid-mounted housing with coaxial hinge at the rear; double-walled high-strength thermoplastic; transparent panoramic media window
● Power Supply: Auto-ranging power converter
● Indicator Lights/Display: Two 3-color indicator lights, multi-line monochrome graphic display, configuration menu system, voice alarm, real-time clock
● Dimensions: 203mm wide * 187mm high * 282mm deep
● Weight: 2.4kg

Integrated
● Communication Ports: RS232 serial port, USB 2.0, parallel port, Ethernet interface, USB host port
● Optional Communication Ports: 802.11a/b/g wireless LAN port, Bluetooth v2.0
● 802.11a/b/g: – Network Standard: IEEE 802.11a/b/g; – Wireless Access Modes: Infrastructure and Point-to-Point; – Security Protocols: WEP/WPA/WPA2
● Software: – DMX Config: Printer configuration tool; – DMX Net Manager: Network printer management tool; – Embedded Configurator: Built-in printer configuration tool; – Drivers: Windows 7, Windows XP, Windows Vista, Windows NT
● Firmware: – Updates: Available online; – Supports common printer command languages: PL-Z (Zebra), PL-B (Boca), PL-I (Intermec), PL-E (Eltron)

Barcodes/Fonts/Graphics
● Barcodes: – 1D: code3 of 9, UPC-A, UPC-E, I 2 OF 5, code128, EAN-13, EAN-8, HBIC, Codabar, I 2 OF 5 (with Module 10 checksum), Plessey, 2-digit UPC appendix, 5-digit UPC appendix, code93, Postnet, UCC/EAN Code128, K0Mart NON EDI, Telepen; – 2D: UPS Maxicode, FIM, PDF417, DataMatrix, QR code, Aztec, Code128 (with automatic subset switching), GS1 Databar (replaces RSS), TCIF Linked Bar code3 of 9 (TLC39), MicroPDF417
● Resident Fonts: 10 alphanumeric fonts from 2mm to 6mm, including OCR-A, OCR-B, and AGFA’s CG Triumvirate smooth font.
● Downloadable Font Types: TrueType, AGFA Intellifont, Bitmap
● Character Set: – Modified IBM Code Page 850, containing characters used in English, most European, Nordic, and Spanish-speaking countries; – 50 resident code pages
● Font Expansion/Rotation: All fonts can be expanded vertically and horizontally by 24 times; fonts and graphics can be printed in four directions: 0°, 90°, 180°, and 270°
● Supported Graphics: PCX, BMP, and IMG format files
● Plastic Field of View/Mirror: Any font or graphic field of view can be printed as a normal image or an inverted image.

Media
● Media Type: – Continuous or folded; – Inward-rolled labels, outward-rolled labels; – Perforations between adjacent labels for easy separation; – Spacing, black bar, cut, and hole indexing functions
● Media Width Range: 19mm-111.76mm
● Media Thickness Range: 0.0635mm-0.254mm
● Media Sensing: Fixed or adjustable sensor capable of detecting gaps between labels, black bars on the backing, and cuts or holes
● Label Paper Removal: Can be used with optional cutters or tearing operations
● Ribbon Type: Coated side facing inward or outward
● Ribbon Width Range: 25mm-109mm
● Ribbon Core: 13mm-25mm
● Ribbon Roll Core [Diameter * Length]: 13mm*109mm; 25mm*25-109mm

Accessories
● Battery pack
● External rewinder
● Battery box
● Automatic loading channel
● Power cabinet
● External media support

Options
● Thermal transfer function (including 1-inch ribbon adapter)
● Wireless LAN port
● Bluetooth v2.0
● Tag peeler with sensing area
● Cutter with sensing area

The Datamax-O’Neil E-Class Mark III is a series of compact desktop thermal printers designed to meet the needs of various industries and applications for highly reliable and cost-effective barcode printers.

Leveraging its expertise in industrial-grade printer technology, Datamax-O’Neil has created an entry-level printer with features and reliability typically found only in higher-end models.

The E-Class Mark III is affordable, easy to use, and has low maintenance costs.

The E-Class Mark III is easy to use, loads media quickly, and features an interactive LCD screen. Users will also find significantly lower daily operating costs due to its larger media and ribbon capacity. The E-Class Mark III is one of the most cost-effective barcode printers on the market. It is attractively priced, well-designed, reliable, and has longer uptime than other printers.

The Datamax-O’Neil E-4206P Professional 203dpi desktop barcode printer is suitable for complex applications requiring high interface capabilities, higher performance, and wireless communication. It features a graphical display with a navigation menu interface, a real-time clock, voice alarms, a USB host interface, faster printing speeds, and optional wireless LAN and Bluetooth communication ports.

Datamax-O’Neil E-4206P Features:
● Easy Loading
Horizontal center-opening cabinet with rear-hinged connection for easy loading of ribbons and labels.
● Robust Construction
Double-wall construction with coaxial hinges ensures a durable and seamless build.
● Panoramic Media Window
Operators can visually check media levels without interrupting print jobs.
● Spill Protection
The user interface display is sealed to protect sensitive user controls from liquids and debris.
● Lower Ribbon Costs Larger
, standardized ribbons with a one-inch core are less expensive than typical, smaller desktop printer ribbons.
● High-Capacity Media Rolls
(127mm media capacity) reduce downtime and extend uptime.
● Easy Maintenance
Replacing critical components, printheads, and pressure rollers requires no tools or experience. ● Large Graphic Display
Quick and easy changes with clear status indicators.
● Optional
802.11 a/b/g Wi-Fi and Bluetooth ports allow for easy sharing, management, and placement of the printer wherever you prefer.

Datamax-O’Neil E-4206P Detailed Specifications

Printing Technology
● Printing Method: Thermal printing, with optional thermal transfer printing
● Resolution: 203 dpi (8 dots/mm)
● Memory: 32MB DRAM, 64MB Flash
● Maximum Print Width: 108mm
● Print Length Range: 9.5mm-2514mm
● Maximum Print Speed: 6 inches/second (152 millimeters/second)

Physical Characteristics
● Color: Pantone Warm Grey
● Operating Temperature: 4°C – 35°C
● Construction: Mid-mounted housing with coaxial hinge at the rear; double-walled high-strength thermoplastic; transparent panoramic media window
● Power Supply: Auto-ranging power converter
● Indicator Lights/Display: Two 3-color indicator lights, multi-line monochrome graphic display, configuration menu system, voice alarm, real-time clock
● Dimensions: 203mm wide * 187mm high * 282mm deep
● Weight: 2.4kg

Integrated
● Communication Ports: RS232 serial port, USB 2.0, parallel port, Ethernet interface, USB host port
● Optional Communication Ports: 802.11a/b/g wireless LAN port, Bluetooth v2.0
● 802.11a/b/g: – Network Standard: IEEE 802.11a/b/g; – Wireless Access Modes: Infrastructure and Point-to-Point; – Security Protocols: WEP/WPA/WPA2
● Software: – DMX Config: Printer configuration tool; – DMX Net Manager: Network printer management tool; – Embedded Configurator: Built-in printer configuration tool; – Drivers: Windows 7, Windows XP, Windows Vista, Windows NT
● Firmware: – Updates: Available online; – Supports common printer command languages: PL-Z (Zebra), PL-B (Boca), PL-I (Intermec), PL-E (Eltron)

Barcodes/Fonts/Graphics
● Barcodes: – 1D: code3 of 9, UPC-A, UPC-E, I 2 OF 5, code128, EAN-13, EAN-8, HBIC, Codabar, I 2 OF 5 (with Module 10 checksum), Plessey, 2-digit UPC appendix, 5-digit UPC appendix, code93, Postnet, UCC/EAN Code128, K0Mart NON EDI, Telepen; – 2D: UPS Maxicode, FIM, PDF417, DataMatrix, QR code, Aztec, Code128 (with automatic subset switching), GS1 Databar (replaces RSS), TCIF Linked Bar code3 of 9 (TLC39), MicroPDF417
● Resident Fonts: 10 alphanumeric fonts from 2mm to 6mm, including OCR-A, OCR-B, and AGFA’s CG Triumvirate smooth font.
● Downloadable Font Types: TrueType, AGFA Intellifont, Bitmap
● Character Set: – Modified IBM Code Page 850, containing characters used in English, most European, Nordic, and Spanish-speaking countries; – 50 resident code pages
● Font Expansion/Rotation: All fonts can be expanded vertically and horizontally by 24 times; fonts and graphics can be printed in four directions: 0°, 90°, 180°, and 270°
● Supported Graphics: PCX, BMP, and IMG format files
● Plastic Field of View/Mirror: Any font or graphic field of view can be printed as a normal image or an inverted image.

Media
● Media Type: – Continuous or folded; – Inward-rolled labels, outward-rolled labels; – Perforations between adjacent labels for easy separation; – Spacing, black bar, cut, and hole indexing functions
● Media Width Range: 19mm-111.76mm
● Media Thickness Range: 0.0635mm-0.254mm
● Media Sensing: Fixed or adjustable sensor capable of detecting gaps between labels, black bars on the backing, and cuts or holes
● Label Paper Removal: Can be used with optional cutters or tearing operations
● Ribbon Type: Coated side facing inward or outward
● Ribbon Width Range: 25mm-109mm
● Ribbon Core: 13mm-25mm
● Ribbon Roll Core [Diameter * Length]: 13mm*109mm; 25mm*25-109mm

Accessories
● Battery pack
● External rewinder
● Battery box
● Automatic loading channel
● Power cabinet
● External media support

Options
● Thermal transfer function (including 1-inch ribbon adapter)
● Wireless LAN port
● Bluetooth v2.0
● Tag peeler with sensing area
● Cutter with sensing area

The Datamax-O’Neil E-Class Mark III is a series of compact desktop thermal printers designed to meet the needs of various industries and applications for highly reliable and cost-effective barcode printers.

Leveraging its expertise in industrial-grade printer technology, Datamax-O’Neil has created an entry-level printer with features and reliability typically found only in higher-end models.

The E-Class Mark III is affordable, easy to use, and has low maintenance costs.

The E-Class Mark III is easy to use and loads media quickly. With its larger media and ribbon capacity, users will also find significant reductions in daily operating costs. The E-Class Mark III is one of the most cost-effective barcode printers on the market. It is attractively priced, well-designed, reliable, and offers longer uptime than other printers.

The Datamax-O’Neil E-4305A Advanced 300dpi Desktop Barcode Printer is suitable for applications requiring network communication, faster printing speeds, or special media compatibility. This model has all the features and options of the basic E-Class Mark III, and comes standard with a USB port, serial port, parallel port, Ethernet interface, a movable media indexing sensor, and printing speeds up to 5 inches per second.

Datamax-O’Neil E-4305A Features:
● Easy Loading
Horizontal center-opening cabinet with rear-hinged connection for easy loading of ribbons and labels.
● Robust Construction
Double-wall construction with coaxial hinges ensures a durable and seamless build.
● Panoramic Media Window
Operators can visually check media levels without interrupting the print job.
● Lower Ribbon Costs
Larger, standardized ribbons with a one-inch core are less expensive than typical, smaller desktop printer ribbons.
● High-Capacity Media Rolls
(127mm) Reduces downtime and extends uptime.
● Easy Maintenance
Replacing critical components, printheads, and pressure rollers requires no tools or experience.

Datamax-O’Neil E-4305A Detailed Specifications

Printing Technology
● Printing Method: Thermal printing, with optional thermal transfer printing
● Resolution: 300 dpi (12 dots/mm)
● Memory: 16MB DRAM, 64MB Flash
● Maximum Print Width: 106mm
● Print Length Range: 9.5mm-2514mm
● Maximum Print Speed: 5 inches/second (127 millimeters/second)

Physical Characteristics
● Color: Pantone Warm Grey
● Operating Temperature: 4°C – 35°C
● Construction: Mid-mounted housing with coaxial hinge at the rear; double-walled high-strength thermoplastic; transparent panoramic media window
● Power Supply: Auto-ranging power converter
● Indicator Lights/Display: Two 3-color indicator lights
● Dimensions: 203mm wide * 187mm high * 282mm deep
● Weight: 2.4kg

Integrated
● Communication Ports: RS232 serial port, USB 2.0, parallel port, Ethernet interface
● Software: – DMX Config: Printer configuration tool; – DMX Net Manager: Network printer management tool; – Embedded Configurator: Built-in printer configuration tool; – Drivers: Windows 7, Windows XP, Windows Vista, Windows NT
● Firmware: – Updates: Available online; – Supports common printer command languages: PL-Z (Zebra), PL-B (Boca), PL-I (Intermec), PL-E (Eltron)

Barcodes/Fonts/Graphics
● Barcodes: – 1D: code3 of 9, UPC-A, UPC-E, I 2 OF 5, code128, EAN-13, EAN-8, HBIC, Codabar, I 2 OF 5 (with Module 10 checksum), Plessey, 2-digit UPC appendix, 5-digit UPC appendix, code93, Postnet, UCC/EAN Code128, K0Mart NON EDI, Telepen; – 2D: UPS Maxicode, FIM, PDF417, DataMatrix, QR code, Aztec, Code128 (with automatic subset switching), GS1 Databar (replaces RSS), TCIF Linked Bar code3 of 9 (TLC39), MicroPDF417
● Resident Fonts: 10 alphanumeric fonts from 2mm to 6mm, including OCR-A, OCR-B, and AGFA’s CG Triumvirate smooth font.
● Downloadable Font Types: TrueType, AGFA Intellifont, Bitmap
● Character Set: – Modified IBM Code Page 850, containing characters used in English, most European, Nordic, and Spanish-speaking countries; – 50 resident code pages
● Font Expansion/Rotation: All fonts can be expanded vertically and horizontally by 24 times; fonts and graphics can be printed in four directions: 0°, 90°, 180°, and 270°
● Supported Graphics: PCX, BMP, and IMG format files
● Plastic Field of View/Mirror: Any font or graphic field of view can be printed as a normal image or an inverted image.

Media
● Media Type: – Continuous or folded; – Inward-rolled labels, outward-rolled labels; – Perforations between adjacent labels for easy separation; – Spacing, black bar, cut, and hole indexing functions
● Media Width Range: 19mm-111.76mm
● Media Thickness Range: 0.0635mm-0.254mm
● Media Sensing: Fixed or adjustable sensor capable of detecting gaps between labels, black bars on the backing, and cuts or holes
● Label Paper Removal: Can be used with optional cutters or tearing operations
● Ribbon Type: Coated side facing inward or outward
● Ribbon Width Range: 25mm-109mm
● Ribbon Core: 13mm-25mm
● Ribbon Roll Core [Diameter * Length]: 13mm*109mm; 25mm*25-109mm

Accessories
● Battery pack
● External rewinder
● Battery box
● Automatic loading channel
● Power cabinet
● External media support

Options
● Thermal transfer function (with 1-inch ribbon adapter)
● Label peeler with sensing area
● Cutter with sensing area

The Datamax-O’Neil E-Class Mark III is a series of compact desktop thermal printers designed to meet the needs of various industries and applications for highly reliable and cost-effective barcode printers.

Leveraging its expertise in industrial-grade printer technology, Datamax-O’Neil has created an entry-level printer with features and reliability typically found only in higher-end models.

The E-Class Mark III is affordable, easy to use, and has low maintenance costs.

The E-Class Mark III is easy to use and loads media quickly. With its larger media and ribbon capacity, users will also find significant reductions in daily operating costs. The E-Class Mark III is one of the most cost-effective barcode printers on the market. It is attractively priced, well-designed, reliable, and offers longer uptime than other printers.

The Datamax-O’Neil E-4205A Advanced 203dpi Desktop Barcode Printer is suitable for applications requiring network communication, faster printing speeds, or special media compatibility. This model has all the features and options of the basic E-Class Mark III, and comes standard with a USB port, serial port, parallel port, Ethernet interface, a movable media indexing sensor, and printing speeds up to 5 inches per second.

Datamax-O’Neil E-4205A Features:
● Easy Loading
Horizontal center-opening cabinet with rear-hinged connection for easy loading of ribbons and labels.
● Robust Construction
Double-wall construction with coaxial hinges ensures a durable and seamless build.
● Panoramic Media Window
Operators can visually check media levels without interrupting the print job.
● Lower Ribbon Costs
Larger, standardized ribbons with a one-inch core are less expensive than typical, smaller desktop printer ribbons.
● High-Capacity Media Rolls
(127mm) Reduces downtime and extends uptime.
● Easy Maintenance
Replacing critical components, printheads, and pressure rollers requires no tools or experience.

Datamax-O’Neil E-4205A Detailed Specifications

Printing Technology
● Printing Method: Thermal printing, with optional thermal transfer printing
● Resolution: 203 dpi (8 dots/mm)
● Memory: 16MB DRAM, 64MB Flash
● Maximum Print Width: 108mm
● Print Length Range: 9.5mm-2514mm
● Maximum Print Speed: 5 inches/second (127 millimeters/second)

Physical Characteristics
● Color: Pantone Warm Grey
● Operating Temperature: 4°C – 35°C
● Construction: Mid-mounted housing with coaxial hinge at the rear; double-walled high-strength thermoplastic; transparent panoramic media window
● Power Supply: Auto-ranging power converter
● Indicator Lights/Display: Two 3-color indicator lights
● Dimensions: 203mm wide * 187mm high * 282mm deep
● Weight: 2.4kg

Integrated
● Communication Ports: RS232 serial port, USB 2.0, parallel port, Ethernet interface
● Software: – DMX Config: Printer configuration tool; – DMX Net Manager: Network printer management tool; – Embedded Configurator: Built-in printer configuration tool; – Drivers: Windows 7, Windows XP, Windows Vista, Windows NT
● Firmware: – Updates: Available online; – Supports common printer command languages: PL-Z (Zebra), PL-B (Boca), PL-I (Intermec), PL-E (Eltron)

Barcodes/Fonts/Graphics
● Barcodes: – 1D: code3 of 9, UPC-A, UPC-E, I 2 OF 5, code128, EAN-13, EAN-8, HBIC, Codabar, I 2 OF 5 (with Module 10 checksum), Plessey, 2-digit UPC appendix, 5-digit UPC appendix, code93, Postnet, UCC/EAN Code128, K0Mart NON EDI, Telepen; – 2D: UPS Maxicode, FIM, PDF417, DataMatrix, QR code, Aztec, Code128 (with automatic subset switching), GS1 Databar (replaces RSS), TCIF Linked Bar code3 of 9 (TLC39), MicroPDF417
● Resident Fonts: 10 alphanumeric fonts from 2mm to 6mm, including OCR-A, OCR-B, and AGFA’s CG Triumvirate smooth font.
● Downloadable Font Types: TrueType, AGFA Intellifont, Bitmap
● Character Set: – Modified IBM Code Page 850, containing characters used in English, most European, Nordic, and Spanish-speaking countries; – 50 resident code pages
● Font Expansion/Rotation: All fonts can be expanded vertically and horizontally by 24 times; fonts and graphics can be printed in four directions: 0°, 90°, 180°, and 270°
● Supported Graphics: PCX, BMP, and IMG format files
● Plastic Field of View/Mirror: Any font or graphic field of view can be printed as a normal image or an inverted image.

Media
● Media Type: – Continuous or folded; – Inward-rolled labels, outward-rolled labels; – Perforations between adjacent labels for easy separation; – Spacing, black bar, cut, and hole indexing functions
● Media Width Range: 19mm-111.76mm
● Media Thickness Range: 0.0635mm-0.254mm
● Media Sensing: Fixed or adjustable sensor capable of detecting gaps between labels, black bars on the backing, and cuts or holes
● Label Paper Removal: Can be used with optional cutters or tearing operations
● Ribbon Type: Coated side facing inward or outward
● Ribbon Width Range: 25mm-109mm
● Ribbon Core: 13mm-25mm
● Ribbon Roll Core [Diameter * Length]: 13mm*109mm; 25mm*25-109mm

Accessories
● Battery pack
● External rewinder
● Battery box
● Automatic loading channel
● Power cabinet
● External media support

Options
● Thermal transfer function (with 1-inch ribbon adapter)
● Label peeler with sensing area
● Cutter with sensing area
