Category: Epson

In the professional printing field, Epson integrates its unique Micro Piezo and dot matrix printing technologies to launch the new high-speed continuous paper color inkjet printer GP-C832.

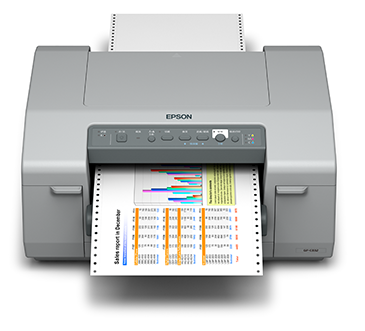

Equipped with unique 4-color separate ink cartridges, the GP-C832 delivers high-quality color labels with excellent color performance!

● Industrial production standards are used in the design to improve operability and efficiency.

● Main unit has a print lifespan of 600,000 pages, demonstrating stable and excellent print quality.

● High-speed and stable high-volume printing reduces overall costs.

Featuring high speed and stability, quiet operation, energy saving, high quality and durability, the GP-C832 provides high-productivity and low TCO (Total Cost of Ownership) solutions for industries such as chemical, insurance, manufacturing, medical, and oil exploration. In addition, the GP-C832 offers a variety of new solutions for optimizing business processes such as report printing, document output, and label printing, while also demonstrating outstanding performance to users!

Epson GP-C832 Product Features:
◆ High Efficiency, Say Goodbye to Delays and Waiting
Utilizing Micro Piezo technology, no heating is required, achieving printing speeds up to 19.7 ipm, 8 times faster than dot matrix printers!

◆ Superior Print Quality
Full-color DURABrite Ultra waterproof and lightfast inks preserve print-quality results on plain paper for extended periods. Waterproof, lightfast, quick-drying, and scratch-resistant, providing users with outstanding detail.

◆ Ultra-Quiet, Energy-Saving
A silent mode reduces operating noise to 48 decibels, equivalent to the sound environment of a library/reading room.

◆ High Duty Cycle, Capable of High-Volume Output With
a main unit lifespan of 600,000 pages, high productivity handles high-volume business output.

◆ Low Cost, Durable Machine, Large Ink Cartridge Capacity
Utilizing Micro Piezo technology, ink is sprayed on demand, reducing wear and waste, effectively lowering overall operating costs.

◆ Easy to use and meets user needs
. Stable performance, simple operation, convenient mobile deployment, unique ESC/P2 printing command mode, easily achieves seamless integration with dot matrix printers.

Epson GP-C832 Detailed Specifications and

Printing Functions
Colors: Individual color ink cartridges (black, cyan, magenta, yellow)
Printing Principle: On-demand full-color inkjet (MicroPiezo printing technology)
Ink Colors: Pigment ink
Ink Types: Black, Cyan, Magenta, Yellow
Paper Path Design: With paper feeder/Rear-in, Front-out
Print Resolution: 5760 dpi x 1440 dpi (maximum resolution, ExtraFine3 mode)
Print Interface: High-speed USB/Bidirectional parallel port; Ethernet: 100BASE-TX/10BASE-T
Print Speed: Super Draft mode: 19.7 ipm; Draft mode: 19.7 ipm; Normal mode: 18.1 ipm; Fine mode: 10.2 ipm; ExtraFine1 mode: 3.5 ipm; ExtraFine2 mode: 3.5 ipm; ExtraFine3 mode: 1.3 ipm
Paper
Width: 76.2 – 241.3 mm (3.0 – 9.5 inch)
Length: (per page) *2 12.7 – 558.8 mm (0.5 – 22.0 inch)
Thickness: 0.065 – 0.14 mm (0.0025 – 0.0055 inch)
Weight: 45 kg – 110 kg (per 1000 pages)
Printable Area:
Maximum Print Width: 203.2 mm (8.0 inch)
Left Margin: 13.0 mm (0.51 inch)
Right Margin: 13.0 mm (0.51 inch)
Top Margin: 2.0 mm (0.08 inch)
Bottom Margin: 2.0 mm (0.08 inch)
Barcode Font
: Driver Included: Barcode: Code 39, Code 128, Interleaved 2 of 5; Two-dimensional code: QR Code
Electrical Specifications
: Voltage: AC 110 – 240V (AC (Adaptor)
Energy Consumption: Operating: Approx. 33 W (ISO/IEC 10561 letter pattern); Standby: Approx. 8 W ​​(Sleep mode approx. 2.9 W)
Noise Level (dB)
: Silent paper feed on startup: Approx. 48 dB(A);
Silent paper feed off-start: Approx. 54 dB(A)
General Specifications
Dimensions (mm): 464 (W) × 465 (D) × 224 (H)
Weight: Approx. 12.2 kg (excluding ink cartridges)
Operating System: Microsoft Windows XP 32bit (SP3) / 64bit (SP2), Microsoft Windows Vista 32bit / 64bit (SP2), Microsoft Windows 7 32bit / 64bit, Microsoft Windows Server 2003, Microsoft Windows Server 2008 / 2008 R2
Control Panel: Chinese, Keypad
Operating Temperature/Humidity: 10 – 35 ℃ / 20 – 80% RH
Normal Transportation Temperature/Humidity: -20 – 40℃ / 5 – 85% RH

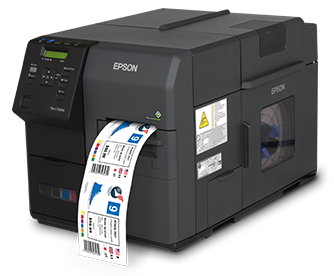

In the field of color label printing, the TM-C7520G is a new generation of full-color label printer using Epson’s latest PrecisionCore line printing technology.

Based on Epson’s proprietary ESC/Label command language, it replaces the traditional mode of pre-printing color overlays of variable information, achieving ultra-high-speed, high-quality on-demand color label printing!

● New technology: PrecisionCore line printing technology, providing high-speed printing at 300mm/s.

● New Commands: ESC/Label command language, easily replacing ZPL II

● Long lifespan: Industrial-grade design, high-capacity ink cartridges, suitable for high-volume label printing needs.

● High quality: 600*1200dpi resolution enables high-quality label printing on demand.

Epson TM-C7520G Product Features:
◆ Ultra-high Speed
The new Precision Core line printhead achieves ultra-high-speed output of 300mm/s, enabling one-pass printing of color labels and variable information.

◆ Sharp Text
Multiple droplet outputs, up to 600*1200dpi resolution, achieving fine printing with font sizes as small as 2pt.

◆ High Productivity
Metal casing, extra-large ink cartridges, supports 8-inch outer diameter roll paper, enabling high-volume label batch printing.

◆ Innovative Commands
Epson’s unique ESC/Label command language allows for seamless replacement with the ZPLII command system, and can pre-store color background images, making one-pass printing of color labels and variable information simpler.

◆ High Ease of Use
Driver supports 3 major barcode software programs, making editing variable information easier. Standard automatic cutter included, optional rewinder for faster cutting and paper rewinding.

◆ Ultra-low cost
Supports high-capacity 4-color individual ink cartridges, replace one color as it runs out; adaptable to multiple media, customers can choose according to cost; print massive amounts of labels on demand, saving inventory costs and reducing TCO.

Detailed specifications of Epson TM-C7520G

Printing Functions
Printing Principle: On-demand full-color inkjet (PrecisionCore line printing)
Ink Type: Pigment ink
Ink Colors: CMYK four-color individual ink cartridges (black, cyan, magenta, yellow)
Print Resolution: 600 x 1200 dpi
Printing Interface: USB, Ethernet, and external I/O interfaces
Print Speed: 300mm/sec or 150mm/sec
Automatic Cutter: Approximately 1,500,000 cuts
Paper Types: Glossy paper, matte paper, and synthetic
paper Paper Formats: Black Label continuous paper, Black Label die-cut labels, die-cut labels (gap) paper
Paper Loading Type: Roll paper (outer diameter ≤ 8 inches) or folded paper

Barcode Fonts
Included Drivers: UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code 39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded Two-dimensional code: PDF417, QR Code, Maxi Code, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, DataMatrix, Aztec Code, MicroPDF, Micro QR.

Paper Specifications
: Paper Width: Label Width: 46mm – 108mm; Backing Paper Width: 50mm – 112mm.
Label Length: Black Label Continuous Roll: 25.4mm – 603mm; Black Label Die-Cut Roll: 25.4mm – 600mm; Black Label Die-Cut Folded Roll: 25.4mm – 301.8mm; Die-Cut Label (Gap) Roll: 25.4mm – 1117.6mm.
Thickness: Glossy Paper Roll: 0.167mm – 0.182mm; Matte Paper, Synthetic Paper Roll: 0.129mm – 0.236mm; Matte folded paper: 0.161mm-0.164mm

Electrical Specifications
: Voltage: AC 110 – 240V
Power Consumption: Operating: approx. 102 W; Standby: approx. 48 W (Sleep mode approx. 5.4W)
Noise: approx. 55 dB(A)

General Specifications
: Dimensions (mm): 392 (W) x 598 (D) x 395 (H) (excluding protrusions)
Weight: approx. 37kg (excluding ink cartridges, maintenance box, and paper rolls)
Operating System: Windows XP SP3 (Home/Professional) (32-bit), Windows Vista SP2 (Home Basic/Home Premium/Business/Enterprise/Ultimate) (32/64-bit), Windows 7 SP1 (Home Basic/Home Premium/Professional/Enterprise/Ultimate) (32/64-bit), Windows 8 (Windows 8/Pro/Enterprise) (32/64-bit), Windows 8.1 (Windows 8.1/Pro/Enterprise) (32/64bit), Windows Server 2003 R2 (Standard/Enterprise/Datacenter) (32bit), Windows Server 2008 (Standard/Enterprise/Datacenter) (32/64bit), Windows Server 2008R2 (Standard/Enterprise/Datacenter), Windows Server 2012 (Essentials/Standard/Datacenter)

Temperature/Humidity
: Normal Operation: 5 – 35°C / 20 – 80% RH
Normal Storage: -20 – 40°C / 5 – 85% RH

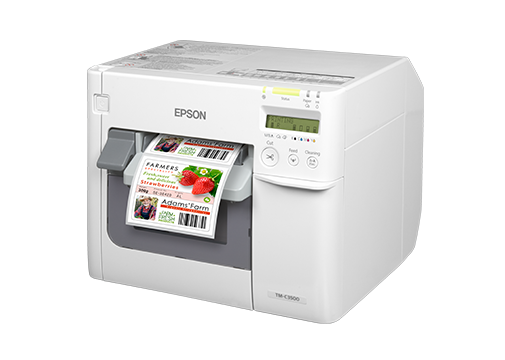

As Epson’s new generation product in the color label field, the TM-C3520 inherits Epson’s unique Micro Piezo printing technology, coupled with a unique 4-color separate ink cartridge and automatic cutter design, providing users with high-quality color label output on demand while effectively reducing TCO (Total Cost of Ownership).

● High-quality, personalized full-color label printers deliver exceptional on-demand output.

●Sleek and stylish design, saving more space

● Compatible with a variety of label printing media, providing more printing solutions for label output.

● Unique split ink cartridge design minimizes label output costs.

●Standard automatic cutter greatly improves label output efficiency

The TM-C3520 provides a new solution with high productivity and low TCO (Total Cost of Ownership) for industries such as chemical, manufacturing, footwear and apparel, and retail.

Epson TM-C3520 Product Features:
◆ 4-Color Inkjet Printing Technology:
The TM-C3520 features a high-capacity 4-color independent ink cartridge insertion design, offering simple and flexible operation, sufficient for general-load color label output.

◆ Automatic Printhead Droplet Detection System
: Utilizing an automatic printhead droplet detection system, the printer head automatically cleans itself when clogged conditions are detected, ensuring long-term output of high-quality color labels.

◆ Multi-Purpose LCD Display
: The newly added LCD display allows for convenient monitoring of ink levels, maintenance cartridge status, and printer troubleshooting.

◆ Included Navi Installation Software:
The software allows for easy and convenient operation of complex functions such as printer settings and paper size settings during hardware installation, all in one step.


◆ Standard Network Interface:
A standard network interface accommodates various user system needs.

◆ Compatibility with Multiple Label Media Types
: Equipped with a spacing sensor, black mark sensor, and paper low sensor, it supports various label media types, meeting the printing needs of various specific labels, tickets, and discount coupons.

Detailed Specifications of Epson TM-C3520

Printing Functions
Printing Mode: On-demand full-color inkjet (MicroPiezo printing technology)
Paper Feed: Roll paper/Folded paper
Printing Speed: Max. 85 mm / sec. (Speed ​​mode, printing 104mm wide labels at 360 x 360 dpi resolution)
Printing Resolution: 360 x 360 dpi / 720 x 360 dpi
Printing Interface: High-speed USB 2.0 / Ethernet port 100BASE-TX / 10BASE-T
Cutter: Plain paper/Die-cut labels (plain media/inkjet media/synthetic media): 1,500,000 cuts; Continuous labels (plain media/inkjet media): 750,000 cuts

Ink
Type: Pigment ink
Colors: C, M, Y, K four-color separate ink

Built-in Barcode
1D Barcode: Barcode UPC-A, UPC-E, JAN13 (EAN), JAN8 (EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded.
Two-dimensional symbols: PDF417, QR Code, Maxi Code, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, DataMatrix, Aztec Code.

Paper Media
: Types: Plain paper, inkjet paper, synthetic paper, glossy paper.
Specifications: Roll paper: 30 – 108 mm; Die-cut label paper: 30 – 112 mm; Folded paper: 50 – 108 mm; Die-cut folded label paper: 50 – 112 mm.
Printable sizes: Die-cut label paper: 25.4 – 108 mm; Die-cut folded label paper: 46 –
Paper thickness: 108 mm ; Roll paper: 0.084 – 0.124 mm; Die-cut label paper: 0.129 – 0.195 mm; Folded paper: 0.124 – 0.128 mm; Die-cut folded label paper: 0.161 – 0.164 mm

Electrical Specifications
: Rated Voltage: AC110 – 240V (AC adapter)
Power Consumption: 30W in operating mode,
2.5W in standby mode
Operating Environment: Temperature 15 – 35℃; Humidity 20 – 80%RH
Dimensions: 307 (W) x 283 (D) x 261 (H) mm
Weight: Approx. 12 kg (excluding ink cartridges, maintenance box, and AC adapter)
