Zebra printers are a benchmark brand in the industrial market, renowned for their all-metal bodies, high-precision printing technology, stability, durability, and adaptability to various scenarios and media. They support intelligent management and efficient maintenance, boasting long battery life and a low failure rate. We can supply a large quantity of printheads and other accessories at excellent value.
The Zebra 220XiIII series is a printer specifically designed for wide-size industrial labels, capable of printing 10 feet per second on 8.5-foot wide labels.
It is particularly suitable for printing special-sized labels such as medical labels, automated industrial labels, and shipping labels for containers.
Zebra 220XII III Plus Product Specifications
Zebra 220xiiii Plus Printer Specifications Printing Method: Thermal Transfer/Thermal Printing Print Resolution: 203dpi (8 dots/mm), 300dpi (12 dots/mm) Maximum Print Width: 216mm Maximum Print Length: 991mm Print Speed: 254mm/sec
Zebra 220xiiii Plus Physical Characteristics Dimensions: 397.5 mm (W) × 495 mm (L) × 393.7 mm (H) Net Weight: 32.7 kg
Zebra 220XII III Plus Product Features Standard Memory: 16 MB SDRAM; 4 MB non-volatile Flash memory; 32-bit RISC microprocessor; Zebra’s E3 print element control technology Automatic paper feeding via through-hole sensor Certifications: Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition; IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme); EN55022: 1998 Class B; EN55024: 1998; EN61000-3-2,3 W/amendment A12; Canadian ICES-003, Class B; FCC Class B; Argentina 92/98 Phase 3; Australia AS/NZS 3548; ROC CNS 13438 Software: ZPL II programming language
Zebra 220xiiii plus barcodes 1D Barcodes: Code 11, UPC-A, UPC-E, Industrial 2 of 5, Code 39, EAN-8, EAN-13, LOGMARS, Code 93, Plessey, Postnet, Code 128 with subsets A/B/C and UCC Case Codes, Interleaved 2 of 5, EAN and UPC with 2 or 5 digit supplements, Codabar, Standard 2 of 5, MSI, ISBT 128, Planet Code, LOGMARS, Industrial 2 of 5, RSS 2D Barcodes: CODABLOCK, PDF417, Code 49, Maxi Code, Data Matrix, QR Code, TC39 (with x.11), Codablock
Zebra 170XII physical properties Dimensions: 334.4 mm (W) × 495 mm (L) × 393.7 mm (H) Net Weight: 30.5 kg
Zebra 170XII Product Features Standard Memory: 16 MB SDRAM; 4 MB non-volatile Flash memory; 32-bit RISC microprocessor; Zebra’s E3 print element control technology Automatic paper feeding via through-hole sensor Certifications: Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition; IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme); EN55022: 1998 Class B; EN55024: 1998; EN61000-3-2,3 W/amendment A12; Canadian ICES-003, Class B; FCC Class B; Argentina 92/98 Phase 3; Australia AS/NZS 3548; ROC CNS 13438 Software: ZPL II programming language
Zebra 170xiiii Barcodes One-dimensional barcodes: Code 11, UPC-A, UPC-E, Industrial 2 of 5, Code 39, EAN-8, EAN-13, LOGMARS, Code 93, Plessey, Postnet, Code 128 with subsets A/B/C and UCC Case Codes, Interleaved 2 of 5, EAN and UPC with 2 or 5 digit supplements, Codabar, Standard 2 of 5, MSI, ISBT 128, Planet Code, LOGMARS, Industrial 2 of 5, RSS Two-dimensional barcodes: CODABLOCK, PDF417, Code 49, Maxi Code, Data Matrix, QR Code, TLC39
The Zebra 140Xi III barcode label printer boasts a print speed of up to 12 feet per second, making it the fastest in the Zebra Xi III series.
Its powerful features and reliable performance make it ideal for industrial applications requiring continuous 24-hour workloads.
Zebra 140xiiiii Product Specifications
Zebra 140xiiii Printer Specifications Printing Method: Thermal Transfer/Thermal Printing Print Resolution: 203 dpi (8 dots/mm) Maximum Print Width: 128 mm Maximum Print Length: 991 mm Print Speed: 305 mm/sec
Zebra 140XII physical properties Dimensions: 283.2 mm (W) × 495 mm (L) × 393.7 mm (H) Net Weight: 25 kg
Zebra 140xiiii Features Standard Memory: 16 MB SDRAM; 4 MB non-volatile Flash memory 32-bit RISC microprocessor Zebra’s E3 print element control technology Pass-through sensor for automatic paper feeding Certifications: Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition; IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme); EN55022: 1998 Class B; EN55024: 1998; EN61000-3-2,3 W/amendment A12; Canadian ICES-003, Class B; FCC Class B; Argentina 92/98 Phase 3; Australia AS/NZS 3548; ROC CNS 13438 Software: ZPL II. Programming Languages
Zebra 140xiiii Barcodes One-dimensional barcodes: Code 11, UPC-A, UPC-E, Industrial 2 of 5, Code 39, EAN-8, EAN-13, LOGMARS, Code 93, Plessey, Postnet, Code 128 with subsets A/B/C and UCC Case Codes, Interleaved 2 of 5, EAN and UPC with 2 or 5 digits supplements, Codabar, Standard 2 of 5, MSI, ISBT 128, Planet Code, LOGMARS, Industrial 2 of 5, RSS Two-dimensional barcodes: CODABLOCK, PDF417, Code 49, Maxi Code, Data Matrix, QR Code, TLC39 (with x.11), Codablock
Zebra 140XII Other Parameters Electrical Parameters: Built-in automatic power supply 90V-264VAC 48-62Hz ; Communication Interface: RS232/422/485 interface and standard parallel port; IEEE1284 bidirectional parallel port, quasi-parallel port, etc. Label: Width: 40 mm – 143 mm Maximum Diameter: Outer diameter 203 mm, Inner diameter 76 mm ; Thickness: 0.076-0.305 mm ; Carbon Ribbon: Standard Length: 300m, 450m, 2:1 or 3:1 label rolls available Width: 40mm – 130mm ; Reel Inner Diameter: 25.4mm; Maximum Reel Diameter: 81.3mm
The Zebra 110XiIII Plus is designed for harsh industrial environments with dust, pollution, and high temperatures.
Its superior performance and all-metal casing ensure continuous 24/7 operation, making it particularly suitable for high-volume barcode label printing.
ZebraLink proactive notifications allow you to easily monitor printer status and make timely adjustments, regardless of your location.
Three different resolution barcode printers— the Zebra 112XiIII , Zebra 113XiIII , and Zebra 116XiIII— are available to meet your diverse industrial barcode printing needs.
The Zebra 110xiiii PLUS barcode printer is a professionally designed high-end industrial barcode printer. Even for your most demanding applications, you can trust the Zebra 110XiIII to handle your needs. It features up to 4MB of DRAM, allowing for fast flash storage of large amounts of label formats, graphics, and fonts. These printers can withstand continuous 24/7 operation and the harsh conditions of heavy industrial production environments with dust, pollution, and high temperatures. They are compatible with various label media and suitable for printing specialized barcode labels across various industries. Mature technology and professional maintenance provide optimal after-sales service.
Zebra 110xiiii Detailed Specifications Print Resolution: 203 DPI: Zebra 112xiiii Plus; 300 DPI: Zebra 113xiiii Plus; 600 DPI: Zebra 116xiiii Plus Print Speed: 203 dpi: 2.4″ – 10″/sec (61 – 254 mm/sec) 300 dpi: 2.4″ – 8″/sec (61 – 203 mm/sec) 600 dpi: 1.5″ – 4″/sec (38 – 102 mm/sec) Print Width: 203 dpi: 4.09″ (104 mm) 300 dpi: 4.09″ (104 mm) 600 dpi: 3.2″ (81 mm) Paper Width: 203 dpi: 4.09″ (104 mm) 300 dpi: 4.09″ (104 mm) 600 dpi: 3.2″ (81 mm) Print Length: 508mm Printing Method: Thermal Transfer/Thermal Paper Detection Method: Automatic Paper Detection Control Technology: Zebra’s E3 Print Element Control Technology Driver: Printing driver based on Windows 3.X 95/98/NT/2000 Programming Language: ZPL, ZPLⅡ programming languages Label Width: 20.07mm-90mm Maximum Label Diameter: 203mm Paper Reel Diameter: 76mm Label Gap: 2mm-4mm Label Thickness: 0.076-0.3mm Minimum Label Length: 508mm Maximum Ribbon Length/Roll: 450m Ribbon Width: 20-87mm Ribbon Reel Inner Diameter: 25mm Maximum Ribbon Reel Diameter: 81mm Processor: 32-bit RISC and CISC processors Memory: 16MB RAM, 4 flash memory modules Interfaces: RS232/USB2.0 interface and standard parallel port Dimensions (H*W*D): 393*232*495 mm Weight/Structure: Metal structure, 22.7kg
Physical Properties Dimensions: Width 232.4 mm × Length 495 mm × Height 393.7 mm Net Weight: 22.7 kg
Product Features Standard Memory: 16 MB SDRAM; 4 MB non-volatile Flash memory; 32-bit RISC microprocessor; Zebra’s E3 print element control technology Pass-through sensor for automatic paper feeding Certifications: Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2No. 60950-00 Third Edition; IEC 950/EN60950: 1992W/amendments 1 thru 4 (CB Scheme); EN55022: 1998 Class B; EN55024: 1998; EN61000-3-2,3 W/amendment A12; Canadian ICES-003, Class B; FCC Class B; Argentina 92/98 Phase 3; Australia AS/NZS 3548; ROCCNS13438 Software: ZPL II programming language
Barcodes One-dimensional barcodes: Code 11, UPC-A, UPC-E, Industrial 2 of 5, Code 39, EAN-8, EAN-13, LOGMARS, Code 93, Plessey, Postnet, Code 128 with subsets A/B/C and UCC Case Codes, Interleaved 2 of 5, EAN and UPC with 2 or 5 digits supplements, Codabar, Standard 2 of 5, MSI, ISBT 128, Planet Code, RSS Two-dimensional barcodes: CODABLOCK, PDF417, Code 49, Maxi Code, Data Matrix, QR Code, TLC39 (with x.11), Codablock
Other Parameters Electrical Parameters: Built-in automatic power supply 90V-265V 48-62Hz ; Communication Interface: RS232/422/485 interface and standard parallel port; IEEE1284 bidirectional parallel port, quasi-parallel port, etc. Label: Width: 20 mm – 91 mm Maximum Diameter: Outer diameter 203 mm, Inner diameter 76 mm ; Thickness: 0.076-0.305 mm ; Carbon Ribbon: Standard Length: 300m, 450m, 2:1 or 3:1 label rolls available Width: 20mm – 90mm; Reel Inner Diameter: 25.4mm; Reel Maximum Diameter: 81.3mm
The Zebra 220Xi4 printer is an ideal choice for many customers due to its robust durability, excellent print quality, fast printing speed, long lifespan, and unparalleled reliability in harsh environments.
Built upon traditional features, the 220Xi4 is designed to help users effectively improve operational efficiency – select models can offer up to 40% faster print speeds, significantly improved 10/100 Ethernet connectivity, a more robust pre-notification system to reduce downtime, and a variety of network connectivity options for easier integration, while the ZebraLink solution provides remote printer management capabilities.
The all-metal Zebra 220Xi4 barcode printer boasts exceptional durability and performance, significantly reducing downtime. 1. The Zebra 220Xi4 printer easily meets the needs of high-volume production lines: ● With a print speed of 10 inches/254 mm per second, the 220Xi4 features one of the fastest technologies on the market, effectively improving the efficiency of batch printing and print-to-use production lines. ● High-speed processing power and throughput contribute to increased efficiency. ● Ample memory allows for the storage of more label formats, fonts, and images. ● The durable metal printhead provides excellent print quality even after prolonged use, effectively reducing or avoiding downtime due to printhead replacements. 2. For mission-critical and 24/7 operations, every second of downtime translates to lost money. The Zebra 220Xi4 printer is the best way to maximize uptime. ● The proven Xi platform ensures uninterrupted 24/7 operation . ● A pre-warning system that alerts users when printhead maintenance or ribbon/media replacement is needed, coupled with remote printer management/monitoring capabilities, allows for rapid identification and resolution of printer problems. 3. The Zebra 220Xi4 printer, meeting industrial strength standards, can withstand the most demanding working environments. ● Durability: The high-diameter steel frame and metal internal components effectively withstand impacts. ● Enclosed design prevents dust from entering. ● Trouble-free operation across a wide range of temperatures and humidity levels. 4. The Zebra 220Xi4 flexibly meets the needs of professional label printing.
Zebra 220Xi4 Detailed Specifications
Standard ● Printing Method: Thermal transfer printing or thermal printing ● Resolution: 203 dpi (8 dots/mm), 300 dpi (12 dots/mm) ● Memory: 16 MB SDRAM, 8 MB Flash ● Maximum Print Width: 216 mm ● Maximum Print Speed: 203 dpi: 10 inches/second (254 mm/second); 300 dpi: 6 inches/second (152 mm/second) ● 32-bit 133 MHz RISC processor ● 8 MB Flash memory—including 2.0 MB of user-available non-volatile memory storage for downloadable content ● Built-in real-time clock ● Advanced label/media counter ● Automatic calibration—the printer automatically calibrates upon startup or when the printhead is closed after approximately two labels ● Pre-warning system—alerts are issued via the front panel and ZebraLink warnings for low label/ribbon levels or printhead cleaning ● New multi-function front panel and multilingual widescreen monochrome LCD display—with user-programmable password protection ● Transparent media side door—easily monitor consumable usage without opening the printer system ● With E3 Element Energy Control’s thin-film printheads facilitate superior print quality . Features include: a serial RS-232 port with automatic detection and a bidirectional parallel port ; and dual media sensors—emitting and reflective—selectable via software or the front panel.
Electrical Parameters ● 90-264 VAC, 48-62 Hz universal power supply with power parameter correction ● Serial RS-232 and bidirectional parallel ports with automatic detection ● USB 2.0 port
Labels and Ribbons ● Maximum Media Roll Size: Outer core diameter 8 inches/203 mm, Inner core diameter 3 inches/76 mm ● Media Thickness (Labels and Backing Paper): 0.003 inches/0.076 mm to 0.012 inches/0.305 mm ● Media Width (Labels and Backing Paper): 4.25 inches/108 mm to 8.8 inches/224 mm ● Media Length (Labels and Backing Paper): 39 inches/991 mm to 150 inches/3810 mm (using non-continuous paper) ● Media Type: Continuous paper, die-cut paper, or black label paper ● For optimal print quality and printer performance, it is recommended to use sensitive consumables. ● It is recommended that the ribbon width be at least the same as the media width. ● Maximum media roll size: Outer diameter 3.2 inches/81.3 mm, inner diameter 1 inch/25.4 mm ● Ribbon width: 4.25 inches/108 mm to 8.6 inches/220 mm ● Standard ribbon length: 1,476 inches/450 meters or 984 inches/300 meters; available in 3:1 and 2:1 media roll to ribbon ratios ● Ribbon setup: Ink side of the ribbon is wound outwards
Fonts/Graphics/Symbols ● Bit-matrix fonts A through H and GS symbols can be magnified up to 10 times, with separate scaling for height and width . ● Smooth scalable fonts (CG Triumvirate Bold Condensed) can be magnified point by point, with separate scaling for height and width. ● IBM Code Page 850 international character set. ● Includes UFST from Montotype Imaging, Inc. ● Supports user-defined fonts and graphics—including custom logos. ● Linear barcodes: Code 11, Code 39, Code 93, Code 128 (including subsets A/B/C and UCC Case C Codes), ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code. ● Two-dimensional barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF417, TLC39, GS1 DataBar (RSS), Aztec
ZebraLink Solutions ● ZebraDesigner Pro/ZebraDesigner/ZebraDesigner for XML/ZebraNet Utilities v 7.0/ZebraNet Bridge Enterprise/Zebra Enterprise Connector ● ZebraNet Internal Wireless Plus/ZebraNet Wireless Plus Print Server/ZebraNet 10/100 Print Server ● ZPL or ZPL II programming languages—selectable via software or front panel ● XML-enabled printing—direct connection integration facilitates barcode label printing; not only saving on licensing fees and printer server hardware costs, but also reducing customization and programming costs ● Unicode-compatible global printing ● ZBI2.1—allows the printer to run applications, prompt users via control panel commands, and use files stored on the printer as a data source.
Options and Accessories ● Rewinder ● Paper cutter and receiving tray ● Media folding door with transparent panel ● 3-inch/76 mm or 40 mm core media supply shaft ● Labeler interface ● 64 MB onboard linear flash memory ● Extended fonts and international fonts
The Zebra 170Xi4 printer is an ideal choice for many customers due to its robust durability, excellent print quality, fast print speed, long lifespan, and unparalleled reliability in harsh environments.
Built upon traditional features, the 170Xi4 is designed to help users effectively improve operational efficiency – select models can offer up to 40% faster print speeds, 10/100 Ethernet connectivity provides significantly faster speeds, a more robust pre-notification system helps reduce downtime, multiple network connectivity options facilitate easier integration, and the ZebraLink solution provides remote printer management capabilities.
The all-metal Zebra 170Xi4 barcode printer boasts exceptional durability and performance, significantly reducing downtime. 1. The Zebra 170Xi4 printer easily meets the needs of high-volume production lines: ● With a print speed of 12 inches/305 mm per second, the 170Xi4 features one of the fastest technologies on the market, effectively improving the efficiency of batch printing and print-to-use production lines. ● High-speed processing power and throughput contribute to increased efficiency. ● Ample memory allows for the storage of more label formats, fonts, and images. ● The durable metal printhead provides excellent print quality even after prolonged use, effectively reducing or avoiding downtime due to printhead replacements. 2. For mission-critical and 24/7 operations, every second of downtime translates to lost money. The Zebra 170Xi4 printer is the best way to maximize uptime. ● The proven Xi platform ensures uninterrupted 24/7 operation . ● A pre-warning system that alerts users when printhead maintenance or ribbon/media replacement is needed, coupled with remote printer management/monitoring capabilities, allows for rapid identification and resolution of printer problems. 3. The Zebra 170Xi4 printer, meeting industrial strength standards, can withstand the most demanding working environments. ● Durability: The high-diameter steel frame and metal internal components effectively withstand impacts. ● Enclosed design prevents dust from entering. ● Trouble-free operation across a wide range of temperatures and humidity levels. 4. The Zebra 170Xi4 flexibly meets the needs of professional label printing.
Zebra 170Xi4 Detailed Specifications
Standard ● Printing Method: Thermal transfer or thermal printing ● Resolution: 203 dpi (8 dots/mm), 300 dpi (12 dots/mm) ● Memory: 16 MB SDRAM, 8 MB Flash ● Maximum Print Width: 168 mm ● Maximum Print Speed: 12 inches/second (305 mm/second) ● 32-bit 133 MHz RISC processor ● 8 MB Flash memory—including 2.0 MB of user-available non-volatile memory for storing downloadable content ● Built-in real-time clock ● Advanced label/media counter ● Automatic calibration—the printer automatically calibrates upon startup or when the printhead is closed after approximately two labels ● Pre-warning system—alerts are given via the front panel and ZebraLink warnings for low label/ribbon levels or printhead cleaning ● New multi-function front panel and multilingual widescreen monochrome LCD display—with user-programmable password protection ● Transparent media side door—easily monitor consumable usage without opening the printer system ● With E3 Element Energy Control The thin-film printhead facilitates superior print quality . It features a serial RS-232 port with automatic detection and a bidirectional parallel port . It also includes dual media sensors—emitting and reflective—selectable via software or the front panel.
Electrical Parameters ● 90-264 VAC, 48-62 Hz universal power supply with power parameter correction ● Serial RS-232 and bidirectional parallel ports with automatic detection ● USB 2.0 port
Labels and Ribbons ● Maximum Media Roll Size: Outer core diameter 8 inches/203 mm, inner core diameter 3 inches/76 mm ● Media Thickness (Labels and Backing Paper): 0.003 inches/0.076 mm to 0.012 inches/0.305 mm ● Media Width (Labels and Backing Paper): 2 inches/51 mm to 7.1 inches/180 mm ● Media Length (Labels and Backing Paper): 39 inches/991 mm to 150 inches/3810 mm (using non-continuous paper) ● Media Type: Continuous paper, die-cut paper, or black label paper ● For optimal print quality and printer performance, it is recommended to use sensitive consumables. ● It is recommended that the ribbon width be at least the same as the media width. ● Maximum media roll size: Outer diameter 3.2 inches/81.3 mm, inner diameter 1 inch/25.4 mm ● Ribbon width: 2 inches/51 mm to 6.7 inches/170 mm ● Standard ribbon length: 1,476 inches/450 meters or 984 inches/300 meters; available in 3:1 and 2:1 media roll to ribbon ratios ● Ribbon setup: Ink side of the ribbon is wound outwards
Fonts/Graphics/Symbols ● Bit-matrix fonts A through H and GS symbols can be magnified up to 10 times, with separate scaling for height and width . ● Smooth scalable fonts (CG Triumvirate Bold Condensed) can be magnified point by point, with separate scaling for height and width. ● IBM Code Page 850 international character set. ● Includes UFST from Montotype Imaging, Inc. ● Supports user-defined fonts and graphics—including custom logos. ● Linear barcodes: Code 11, Code 39, Code 93, Code 128 (including subsets A/B/C and UCC Case C Codes), ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code. ● Two-dimensional barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF417, TLC39, GS1 DataBar (RSS), Aztec
ZebraLink Solutions ● ZebraDesigner Pro/ZebraDesigner/ZebraDesigner for XML/ZebraNet Utilities v 7.0/ZebraNet Bridge Enterprise/Zebra Enterprise Connector ● ZebraNet Internal Wireless Plus/ZebraNet Wireless Plus Print Server/ZebraNet 10/100 Print Server ● ZPL or ZPL II programming languages—selectable via software or front panel ● XML-enabled printing—direct connection integration facilitates barcode label printing; not only saving on licensing fees and printer server hardware costs, but also reducing customization and programming costs ● Unicode-compatible global printing ● ZBI2.1—allows the printer to run applications, prompt users via control panel commands, and use files stored on the printer as a data source.
Options and Accessories ● Rewinder ● Paper cutter and receiving tray ● Media folding door with transparent panel ● 3-inch/76 mm or 40 mm core media supply shaft ● Labeler interface ● 64 MB onboard linear flash memory ● Extended fonts and international fonts
The Zebra 140Xi4 printer is an ideal choice for many customers due to its robust durability, excellent print quality, fast print speed, long lifespan, and unparalleled reliability in harsh environments.
Built on legacy features, the 140Xi4 is designed to help users effectively improve operational efficiency – select models can offer up to 40% faster print speeds, 10/100 Ethernet connectivity provides significantly faster speeds, a more robust pre-notification system helps reduce downtime, multiple network connectivity options facilitate easier integration, and the ZebraLink solution provides remote printer management capabilities.
The all-metal Zebra 140Xi4 barcode printer boasts exceptional durability and performance, significantly reducing downtime. 1. The Zebra 140Xi4 printer easily meets the needs of high-volume production lines: ● With a print speed of 14 inches/356 mm per second, the 140Xi4 features one of the fastest technologies on the market, effectively improving the efficiency of batch printing and print-to-use production lines. ● High-speed processing power and throughput contribute to increased efficiency. ● Ample memory allows for the storage of more label formats, fonts, and images. ● The durable metal printhead provides excellent print quality even after prolonged use, effectively reducing or avoiding downtime due to printhead replacements. 2. For mission-critical and 24/7 operations, every second of downtime translates to lost money. The Zebra 140Xi4 printer is the best way to maximize uptime. ● The proven Xi platform ensures uninterrupted 24/7 operation . ● A pre-warning system that alerts users when printhead maintenance or ribbon/media replacement is needed, coupled with remote printer management/monitoring capabilities, allows for rapid identification and resolution of printer problems. 3. The Zebra 140Xi4 printer, meeting industrial strength standards, can withstand the most demanding working environments. ● Durability: The high-diameter steel frame and metal internal components effectively withstand impacts. ● Enclosed design prevents dust from entering. ● Trouble-free operation across a wide range of temperatures and humidity levels. 4. The Zebra 140Xi4 flexibly meets the needs of professional label printing.
Zebra 140Xi4 Detailed Specifications
Standard ● Printing Method: Thermal transfer or thermal printing ● Resolution: 203 dpi (8 dots/mm) ● Memory: 16MB SDRAM, 8MB Flash ● Maximum Print Width: 128mm ● Maximum Print Speed: 14 inches/second (356 mm/second) ● 32-bit 133 MHz RISC processor ● 8 MB Flash memory—including 2.0 MB of user-available non-volatile memory for storing downloadable content ● Built-in real-time clock ● Advanced label/media counter ● Automatic calibration—the printer automatically calibrates upon startup or when the printhead is closed after approximately two labels ● Pre-warning system—alerts are given via the front panel and ZebraLink warnings for low label/ribbon levels or printhead cleaning ● New multi-function front panel and multilingual widescreen monochrome LCD display—with user-programmable password protection ● Transparent media side door—easily monitor consumable usage without opening the printer system ● With E3 Element Energy Control The thin-film printhead facilitates superior print quality . It features a serial RS-232 port with automatic detection and a bidirectional parallel port . It also includes dual media sensors—emitting and reflective—selectable via software or the front panel.
Electrical Parameters ● 90-264 VAC, 48-62 Hz universal power supply with power parameter correction ● Serial RS-232 and bidirectional parallel ports with automatic detection ● USB 2.0 port
Labels and Ribbons ● Maximum Media Roll Size: Outer core diameter 8 inches/203 mm, Inner core diameter 3 inches/76 mm ● Media Thickness (Labels and Backing Paper): 0.003 inches/0.076 mm to 0.012 inches/0.305 mm ● Media Width (Labels and Backing Paper): 1.57 inches/40 mm to 5.51 inches/140 mm ● Media Length (Labels and Backing Paper): 39 inches/991 mm to 150 inches/3810 mm (using non-continuous paper) ● Media Type: Continuous paper, die-cut paper, or black label paper ● For optimal print quality and printer performance, it is recommended to use sensitive consumables. ● It is recommended that the ribbon width be at least the same as the media width. ● Maximum media roll size: 3.2 inches/81.3 mm outer diameter, 1 inch/25.4 mm inner diameter ● Standard ribbon length: 1,476 inches/450 meters or 984 inches/300 meters; available in 3:1 and 2:1 media roll to ribbon ratios ● Ribbon setting: ink side of the ribbon is facing outwards during winding
Fonts/Graphics/Symbols ● Bit-matrix fonts A through H and GS symbols can be magnified up to 10 times, with separate scaling for height and width . ● Smooth scalable fonts (CG Triumvirate Bold Condensed) can be magnified point by point, with separate scaling for height and width. ● IBM Code Page 850 international character set. ● Includes UFST from Montotype Imaging, Inc. ● Supports user-defined fonts and graphics—including custom logos. ● Linear barcodes: Code 11, Code 39, Code 93, Code 128 (including subsets A/B/C and UCC Case C Codes), ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code. ● Two-dimensional barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF417, TLC39, GS1 DataBar (RSS), Aztec
ZebraLink Solutions ● ZebraDesigner Pro/ZebraDesigner/ZebraDesigner for XML/ZebraNet Utilities v 7.0/ZebraNet Bridge Enterprise/Zebra Enterprise Connector ● ZebraNet Internal Wireless Plus/ZebraNet Wireless Plus Print Server/ZebraNet 10/100 Print Server ● ZPL or ZPL II programming languages—selectable via software or front panel ● XML-enabled printing—direct connection integration facilitates barcode label printing; not only saving on licensing fees and printer server hardware costs, but also reducing customization and programming costs ● Unicode-compatible global printing ● ZBI2.1—allows the printer to run applications, prompt users via control panel commands, and use files stored on the printer as a data source.
Options and Accessories ● Rewinder ● Paper cutter and receiving tray ● Media folding door with transparent panel ● 3-inch/76 mm or 40 mm core media supply shaft ● Labeler interface ● 64 MB onboard linear flash memory ● Extended fonts and international fonts
The Zebra 110Xi4 printer is an ideal choice for many customers due to its robust durability, excellent print quality, fast printing speed, long lifespan, and unparalleled reliability in harsh environments.
Built upon traditional features, the 110Xi4 is designed to help users effectively improve operational efficiency – select models can offer up to 40% faster print speeds, 10/100 Ethernet connectivity provides significantly faster speeds, a more robust pre-notification system helps reduce downtime, multiple network connectivity options facilitate easier integration, and the ZebraLink solution provides remote printer management capabilities.
The all-metal Zebra 110Xi4 barcode printer boasts exceptional durability and performance, significantly reducing downtime. 1. The Zebra 110Xi4 printer easily meets the needs of high-volume production lines: ● With a print speed of 14 inches/356 mm per second, the 110Xi4 features one of the fastest technologies on the market, effectively improving the efficiency of batch printing and print-to-use production lines. ● High-speed processing power and throughput contribute to increased efficiency. ● Ample memory allows for the storage of more label formats, fonts, and images. ● The durable metal printhead provides excellent print quality even after prolonged use, effectively reducing or avoiding downtime due to printhead replacements. 2. For mission-critical and 24/7 operations, every second of downtime translates to lost money. The Zebra 110Xi4 printer is the best way to maximize uptime. ● The proven Xi platform ensures uninterrupted 24/7 operation . ● A pre-warning system that alerts users when printhead maintenance or ribbon/media replacement is needed, coupled with remote printer management/monitoring capabilities, allows for rapid identification and resolution of printer problems. 3. The Zebra 110Xi4 printer, meeting industrial strength standards, can withstand the most demanding working environments. ● Durability: The high-diameter steel frame and metal internal components effectively withstand impacts. ● Enclosed design prevents dust from entering. ● Trouble-free operation across a wide range of temperatures and humidity levels. 4. The Zebra 110Xi4 flexibly meets the needs of professional label printing.
Zebra 110Xi4 Detailed Specifications
Standard ● Printing Method: Thermal transfer or thermal printing ● Resolution: 203 dpi (8 dots/mm), 300 dpi (12 dots/mm), 600 dpi (23.5 dots/mm) ● Memory: 16 MB SDRAM, 8 MB Flash ● Maximum Print Width: 102 mm ● Maximum Print Speed: 14 inches/second (356 mm/second) ● 32-bit 133 MHz RISC processor ● 8 MB Flash memory—including 2.0 MB of user-available non-volatile memory for storing downloadable content ● Built-in real-time clock ● Advanced label/media counter ● Automatic calibration—the printer automatically calibrates upon startup or when the printhead is closed after approximately two labels ● Pre-warning system—alerts are given via the front panel and ZebraLink warnings for low label/ribbon levels or printhead cleaning ● New multi-function front panel and multilingual widescreen monochrome LCD display—with user-programmable password protection ● Transparent media side door—easily monitor consumable usage without opening the printer system ● With E3 Element Energy Control The thin-film printhead facilitates superior print quality . It features a serial RS-232 port with automatic detection and a bidirectional parallel port . It also includes dual media sensors—emitting and reflective—selectable via software or the front panel.
Electrical Parameters ● 90-264 VAC, 48-62 Hz universal power supply with power parameter correction ● Serial RS-232 and bidirectional parallel ports with automatic detection ● USB 2.0 port
Labels and Ribbons ● Maximum Media Roll Size: Outer core diameter 8 inches/203 mm, Inner core diameter 3 inches/76 mm ● Media Thickness (Labels and Backing Paper): 0.003 inches/0.076 mm to 0.012 inches/0.305 mm ● Media Width (Labels and Backing Paper): 0.79 inches/20 mm to 4.5 inches/114 mm ● Media Length (Labels and Backing Paper): 39 inches/991 mm to 150 inches/3810 mm (using non-continuous paper) ● Media Type: Continuous paper, die-cut paper, or black label paper ● For optimal print quality and printer performance, it is recommended to use sensitive consumables. ● It is recommended that the ribbon width be at least the same as the media width. ● Maximum media roll size: 3.2 inches/81.3 mm outer diameter, 1 inch/25.4 mm inner diameter ● Standard ribbon length: 1,476 inches/450 meters or 984 inches/300 meters; available in 3:1 and 2:1 media roll to ribbon ratios ● Ribbon setting: ink side of the ribbon is facing outwards during winding
Fonts/Graphics/Symbols ● Bit-matrix fonts A through H and GS symbols can be magnified up to 10 times, with separate scaling for height and width . ● Smooth scalable fonts (CG Triumvirate Bold Condensed) can be magnified point by point, with separate scaling for height and width. ● IBM Code Page 850 international character set. ● Includes UFST from Montotype Imaging, Inc. ● Supports user-defined fonts and graphics—including custom logos. ● Linear barcodes: Code 11, Code 39, Code 93, Code 128 (including subsets A/B/C and UCC Case C Codes), ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code. ● Two-dimensional barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF417, TLC39, GS1 DataBar (RSS), Aztec
ZebraLink Solutions ● ZebraDesigner Pro/ZebraDesigner/ZebraDesigner for XML/ZebraNet Utilities v 7.0/ZebraNet Bridge Enterprise/Zebra Enterprise Connector ● ZebraNet Internal Wireless Plus/ZebraNet Wireless Plus Print Server/ZebraNet 10/100 Print Server ● ZPL or ZPL II programming languages—selectable via software or front panel ● XML-enabled printing—direct connection integration facilitates barcode label printing; not only saving on licensing fees and printer server hardware costs, but also reducing customization and programming costs ● Unicode-compatible global printing ● ZBI2.1—allows the printer to run applications, prompt users via control panel commands, and use files stored on the printer as a data source.
Options and Accessories ● Rewinder ● Paper cutter and receiving tray ● Media folding door with transparent panel ● 3-inch/76 mm or 40 mm core media supply shaft ● Labeler interface ● 64 MB onboard linear flash memory ● Extended fonts and international fonts

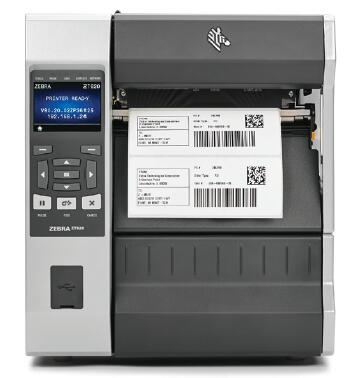

The Zebra ZT620 builds upon its industry-leading predecessor, the Xi series, integrating exceptional durability and superior performance into a user-friendly, future-proof platform.
This next-generation powerhouse helps you navigate the ever-evolving business technology landscape.
Therefore, whether you’re concerned about growing production line demands, increasing operational complexity, integrating disparate systems, or controlling investment costs, the ZT620 industrial printer meets your needs now and in the future.
Zebra ZT620 Product Advantages: ◆ All-Weather Reliability for the Harshest Environments: ZT620 printers can withstand daily use in the most demanding industrial conditions, virtually eliminating downtime due to printer malfunctions. Furthermore, they meet your high-intensity daily production needs with excellent print quality and speed achievable in a wide range of applications. ◆ User-Friendly Setup, Use, Maintenance, and Troubleshooting: The intuitive Link-OS app and user-friendly design simplify everything—from deployment and daily use to routine maintenance. Compatibility with other printing systems and technologies helps simplify integration and management, while built-in sensors, diagnostics, and help resources guide users through troubleshooting, eliminating the need to seek support for every minor issue. ◆ Highly Adaptable Platform for Future Needs: The last thing you need is so-called new technology that becomes obsolete within a few years. That’s why the ZT620 was designed with future needs in mind—from its adaptable design supporting field communication, media handling, and other upgrades to compatibility with SOTI and AirWatch device management software, and the intuitive Link-OS app that simplifies updates and reconfiguration as needed. ◆ Unparalleled performance to meet current needs * Durable all-metal structured components designed for all-weather, high-intensity use, meeting years of continuous operation * Built-in thermal management eliminates the need for ventilation and cooling fans, effectively preventing dust and debris intrusion and enabling trouble-free printing even in the most challenging environments * High-quality printing mechanisms and internal components are carefully designed to ensure outstanding performance and reliability * Long-life printheads reduce replacement costs and help minimize printer downtime * Easily adjustable printhead pressure toggle with graduated and color-coded pressure indicators simplifies printer setup and operation ◆ User-friendly features for everyday operation * Simple, intuitive side media mounting helps ensure efficient printer operation and reduces training requirements * High-visibility color display turns red when the printer is in an error state, allowing users to determine the printer’s status from a distance * Guided media path changes color when a media error occurs, providing simple visual cues to help users quickly find and resolve problems * Color graphic display with icon menu system and local language support helps simplify everyday operation and achieve a better user experience * Built-in chamber lights illuminate the ribbon and media path for enhanced visibility. * Color-coded components make all contacts easily identifiable . * Quick troubleshooting is achieved with QR codes linked to help videos for errors. * Quick-change printheads simplify maintenance with easy-to-plug receptacles, eliminating the need for wiring. * Convenient single-knob adjustment without affecting media positioning is achieved with integrated top and bottom media sensors. * Powerful insights for a smarter future: * Link-OS Printer Profile Manager Enterprise enables administrators to monitor networked Link-OS printers from a user-friendly, browser-based interface . * The Mobile Device Management connector easily integrates networked printers into AirWatch or SOTI Device Management systems. * Link-OS Cloud Connect provides direct, encrypted, and authenticated connectivity to connect printers to clients or cloud-based servers. * Zebra’s visibility services enable businesses to track and analyze printer status, performance, and usage, driving improved business performance. * Exceptional adaptability for a better future :* Optional advanced RFID coding is easy to install and use . Field-installable media handling options take full advantage of the partition-type electrical connectors for easy and quick installation to expand printer functionality. * Two USB host ports allow for flexible connection of various peripheral devices. * Two available communication slots facilitate quick and easy addition of connectivity options, including 802.11ac, parallel, Ethernet, IPv6, and labeler interfaces.
Zebra ZT620 Detailed Specifications
Standard Features ● Printing Methods: Thermal transfer and thermal printing ● Design: Metal frame and folding metal media cover with a large, clear window ● Side-mounted consumable path for simplified media and ribbon installation ● Printhead with Element Energy Equalizer (E3) technology for excellent print quality ● Communication: High-speed USB 2.0, RS-232 serial, Gigabit Ethernet, Bluetooth 4.0 ● Highly intuitive color display that turns red when the printer is in an error state, allowing operators to check the printer’s status from a distance ● Simplified icon-based menu navigation system categorizes settings into different logical function groups
Print Specifications ● Resolution: 203 dpi (8 dots/mm), 300 dpi (12 dots/mm) (optional) ● Memory: 1 GB RAM, 2 GB Flash ● Maximum Print Width: 6.6 inches/168 mm ● Maximum Print Length: 203 dpi: 3810 mm; 300 dpi: 2540 mm ● Maximum Print Speed: 12 inches/second (305 mm/second) ● Media Sensor: Transmissive and Reflective
Media Characteristics ● Media Width (Label and Backing): 2 inches/51 mm to 7 inches/178 mm, tear/cutter; 2 inches/51 mm to 6.75 inches/171 mm, peel/rewind ● Maximum Media Roll Size: 8 inches/203 mm, core outer diameter 3 inches/76 mm, core inner diameter ● Minimum Label Length: 0.25 inches/6 mm (rewind mode); 0.5 inches/13 mm (peel mode); 0.7 inches/18 mm (tear mode); 1.5 inches/38 mm (cutter mode) ● Media Thickness: 0.003 inches/0.076 mm to 0.007 inches/0.18 mm (cutter mode); 0.012 inches/0.305 mm (non-cutter mode) ● Media Type: Continuous paper, die-cut paper, notched paper, black label paper ● Media Printing Deviation: Vertical: ±1.5 mm; Horizontal: ±1.5 mm
Ribbon Characteristics ● Maximum Outer Diameter: 450 meters: 3.2 inches/81.3 mm, Core Outer Diameter: 1 inch/25.4 mm, Core Inner Diameter ● Standard Length: 1476′/450 meters ● Width: 2.00 inches/51 mm to 6.85 inches/174 mm ● Ribbon Setup: Ink side of the ribbon is wound outwards.
Electrical Parameters ● Automatic detection (PFC compliant) 90-250VAC, 47-63Hz, rated power 250 watts ● ENERGY STAR certified
Physical parameters (closed state) ● Width: 13.44 inches / 341.45 mm ● Height: 15.58 inches / 395.68 mm ● Depth: 19.88 inches / 505 mm ● Weight: 57.4 lbs / 26 kg
Fonts/Graphics/Symbols ● 16 built-in scalable ZPL II bitmap fonts and two built-in scalable ZPL fonts ● Scalable smooth bitmap fonts for Asian and other international languages ● Unicode: suitable for multilingual printing ● Downloadable objects include images, scalable fonts and bitmap fonts, label templates and formatting. ● The IBM Code Page 850 international character set is available for fonts A, B, C, D, E, F, G and 0 via software control. ● Code Page 1250, 1252, 1253, 1254, and 1255 support font 0.
Barcode Types: ● 1D Barcodes: Code 11, Code 39, Code 93, Code 128 with A/B/C subsets and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code ● 2D Barcodes: Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, TLC 39, MicroPDF RSS-14 (and additional codes), Aztec
Link-OS Solutions : ● Documentation Design: Quickly design custom printing solutions using business data and Zebra’s intuitive plug-and-play design tools. ● Device Integration: Zebra’s applications and products help you integrate Zebra devices into existing systems. ● Device Management: Manage local and global printing operations with Zebra’s device management tool suite. ● Developer Tools: Provides the tools you need to create your own applications, including documentation, source code, programming languages, templates, and more.
Firmware ● Built-in ZPL, ZPL II, and EPL programming languages can be selected via software or front panel. ● Supports XML printing – Enables XML communication for barcode label printing.
Options and Accessories ● Connecting two available communication slots for adding internal cards to 802.11ac, parallel, Ethernet, and labeler interfaces. IPv6 option as an external adapter attached to the parallel port. ● Media Handling * Rewinder: Rewinds all printed labels inwards onto the 3-inch core, and can also peel and rewind backing paper (factory setting only). * Cutter: Forward-facing guillotine cutter and receiving tray. * 1-inch core inner diameter media supply rack. * Ribbon supply shaft supports ribbon ink-side-in winding. ● Radio Frequency Identification (RFID) * Supports signage compatible with UHF EPC Gen 2 V2/ISO/IEC 18000-6C and RAIN RFID protocols. * Integrated RFID system can be upgraded by the user in the field. * Adaptive coding technology automatically selects the optimal coding settings. ● Keyboard Display Unit: Supports ZKDU keyboard display unit, suitable for standalone printing applications.
